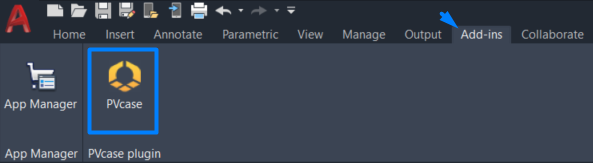

Normally, after the installation of PVcase, its tab should appear in AutoCAD's ribbon under the Add-ins section.
However, in rare cases, you might experience display issues.
If PVcase does not appear under the Add-ins section, follow the steps below:

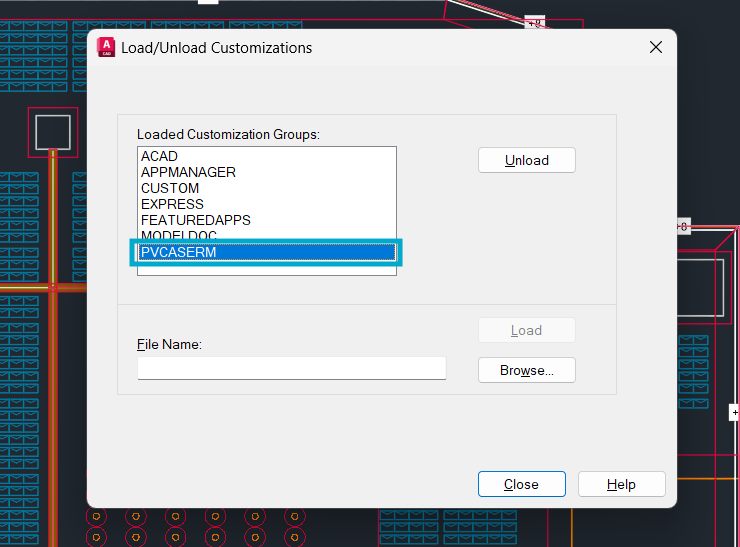

1. Type CUILOAD in the command bar. The following window will open up:
2. Here, you can unload PVCASERM. After unloading you can close the window.
3. Close and reopen AutoCAD to load the plugin. This time it should be available in AutoCAD's ribbon.
