Frame Grouping saved in Electrical Overview
You can now see the groups in the 'Electrical Overview' to make the Frame Grouping functionality more useful. Each Powerstation is shown along with its DC and AC power and the DC/AC ratio. You can use the right-click menu to locate the areas and perform other actions.
Where
Under 'Electrical design', open the 'Electrical devices' tab, and choose 'Overview'. You can also undock the 'Overview' to keep it on the screen to help during the electrical design process.
Single Line Diagram (SLD) shows strings with different lengths

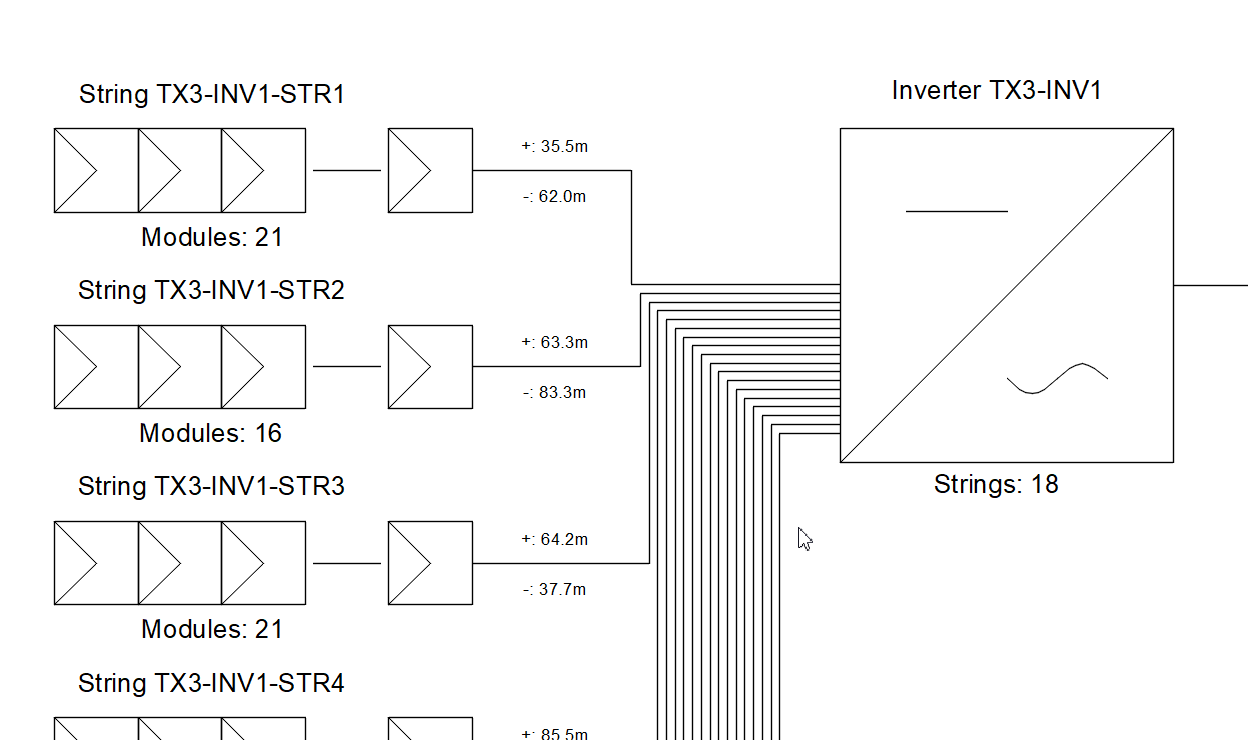

If you have strings of different lengths, the SLD will now show all strings on the device. In addition, the cables going into the combiners are now shown realistically.
Minor updates
-
Fixed an issue where deleting Grid Connections also removed the Transformers attached to them.
-
Powerstations, created in Frame Grouping, can now be used for HV cabling.
-
Single-axis trackers, park settings: horizontal and vertical corridor gaps respect minimum inner and row spacing.
-
Fixed problems with Trunk Generation.
