Export to PVcase Yield

Updated

Getting PVcase Yield user token

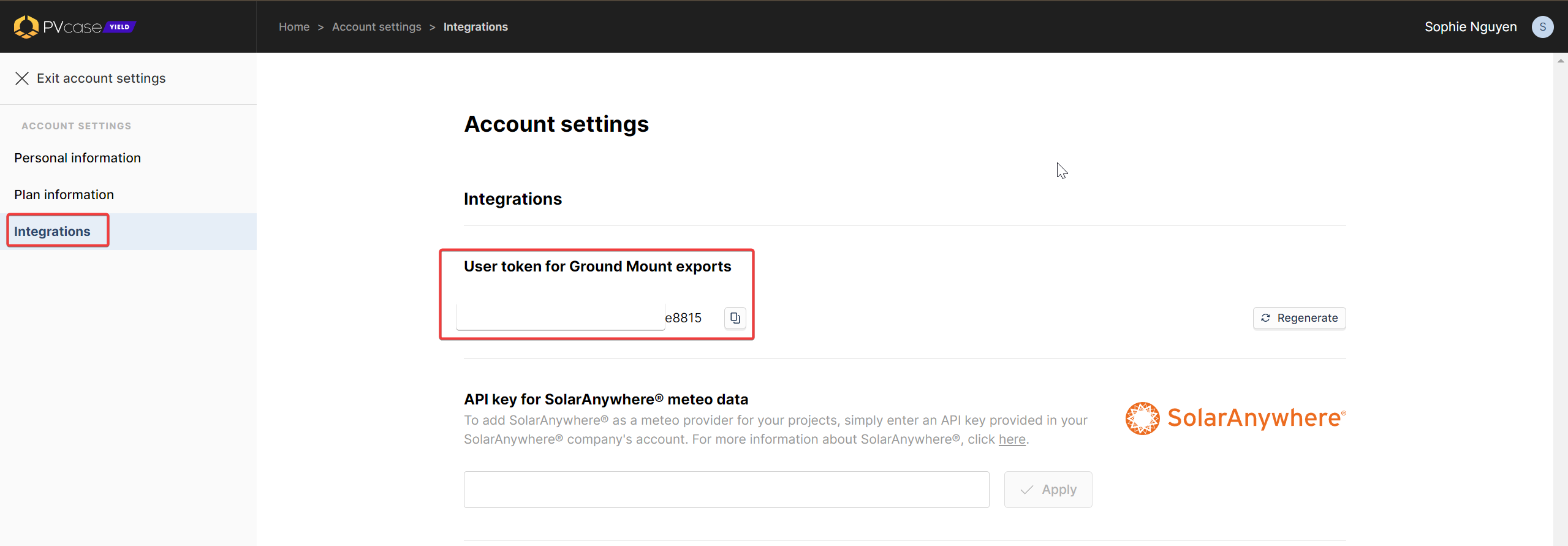

  1. Login to PVcase Yield and go to your Account settings

  2. Copy the Ground Mount user token under Integrations

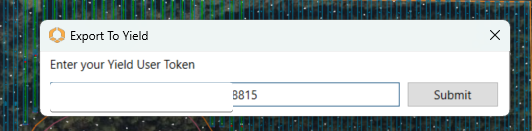

  3. Paste the user token when prompted by the PVcase ground mount

Export to PVcase Yield

You can export layouts from PVcase Ground Mount to PVcase Yield by two methods:

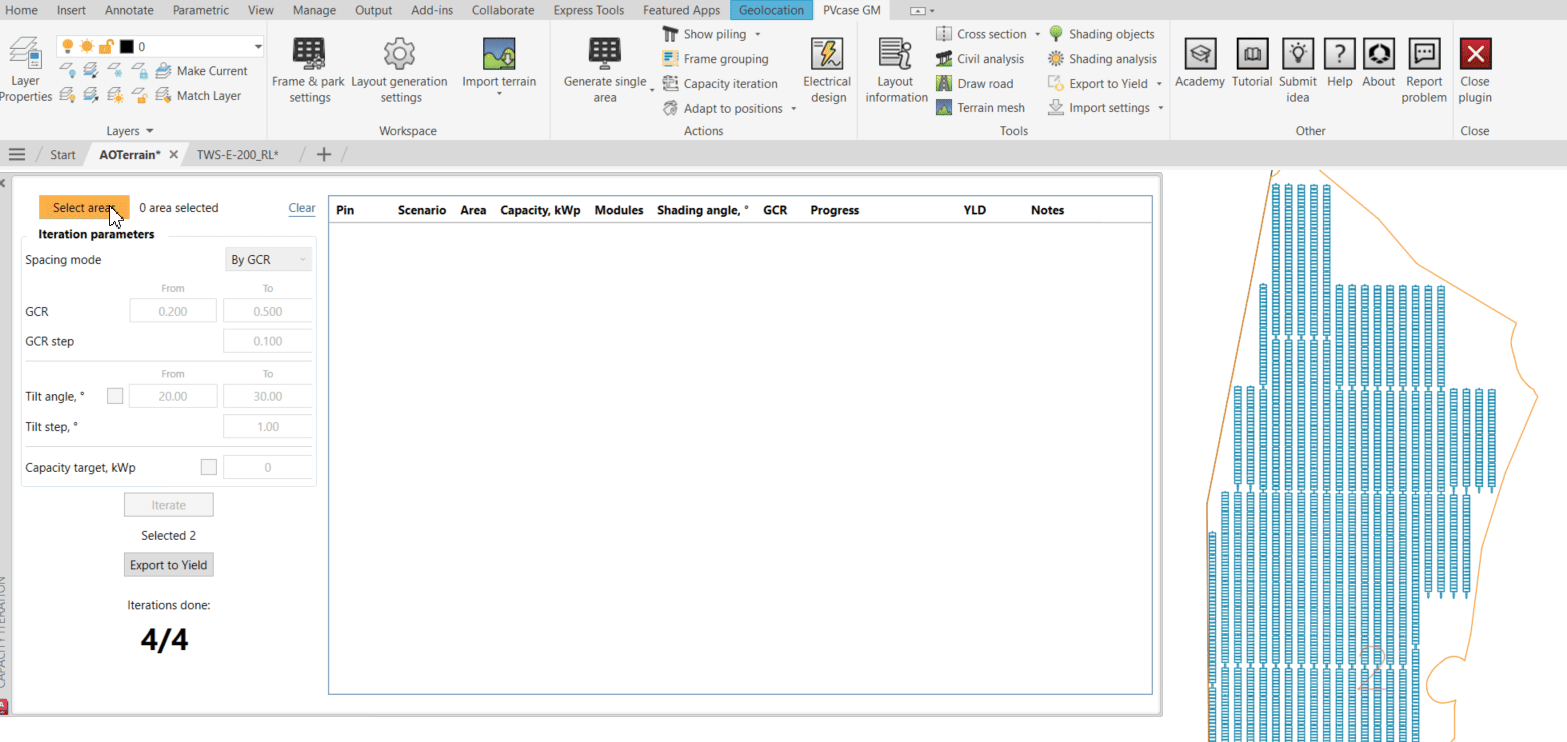

Export to PVcase Yield from the capacity iteration tool

When you select Export to Yield from the Capacity Iteration tool, you will have to input the Yield user token.

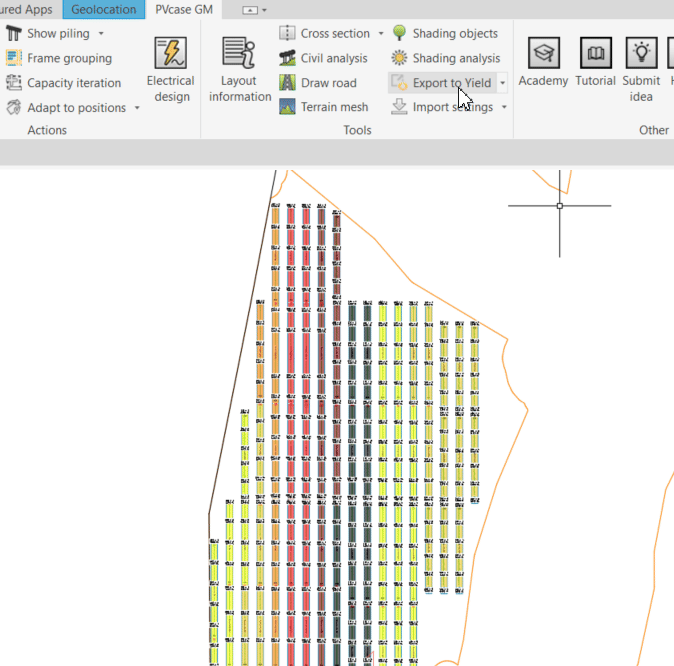

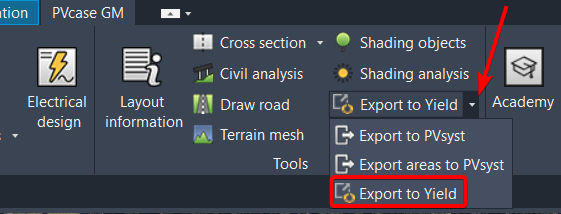

Export to PVcase Yield from PVcase ribbon

The user will be prompted to input the Yield user token and submit

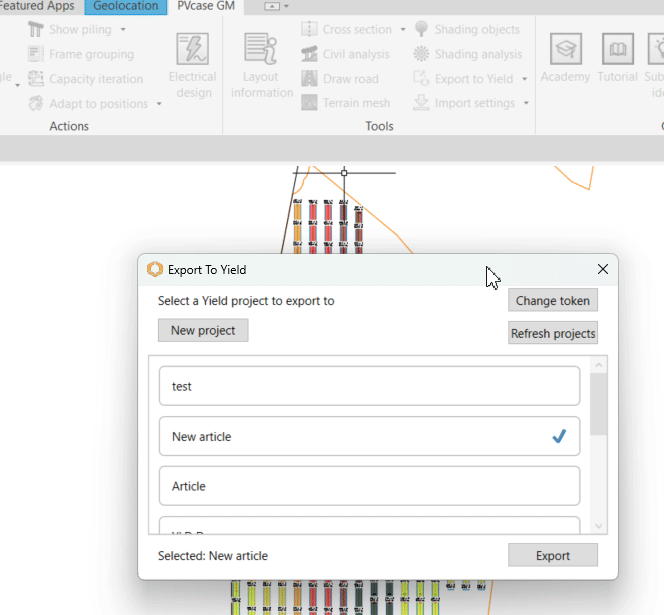

PVcase Yield project options:

  1. Select an existing project and export your layout to a specific project.



  2. Create a new project to export to PVcase Yield directly from PVcase Ground Mount.



  3. Refresh projects to ensure all newly created projects in PVcase Yield are loaded in PVcase Ground Mount view.









×
