Custom Shading Objects

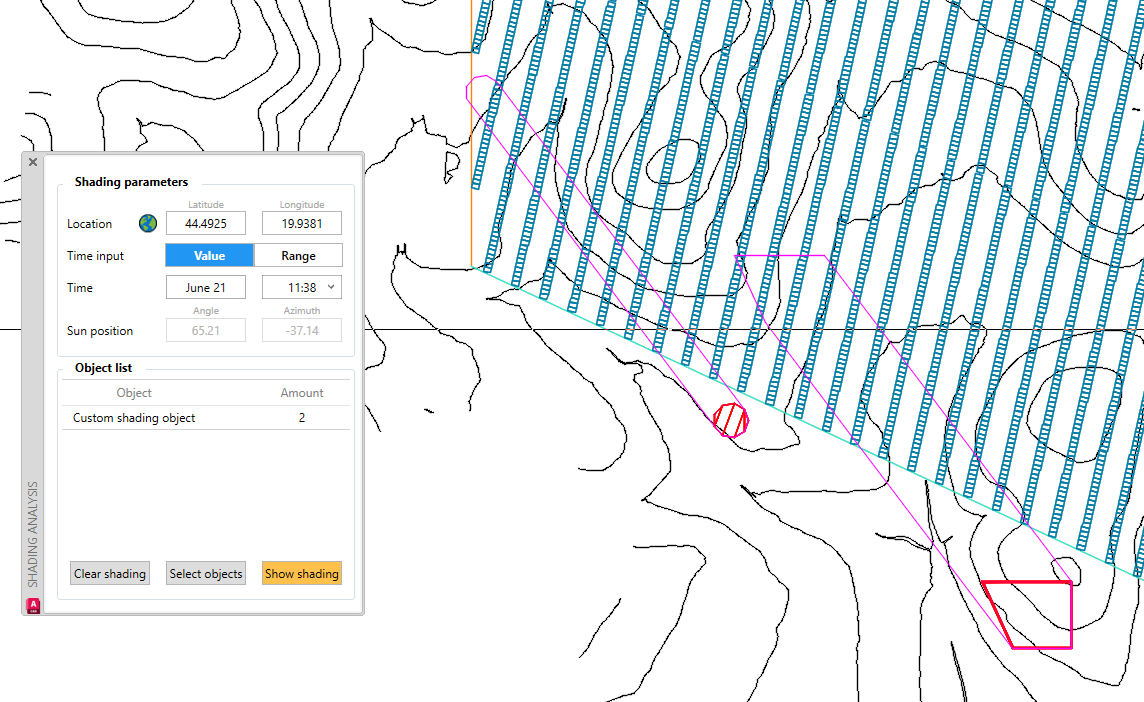

If you have an AutoCAD object of type 3D Solid or Mesh (not Polyfacemesh), you can use it as a shading object. Then, they can be analyzed in Shading Analysis and PVcase Yield for simulation.

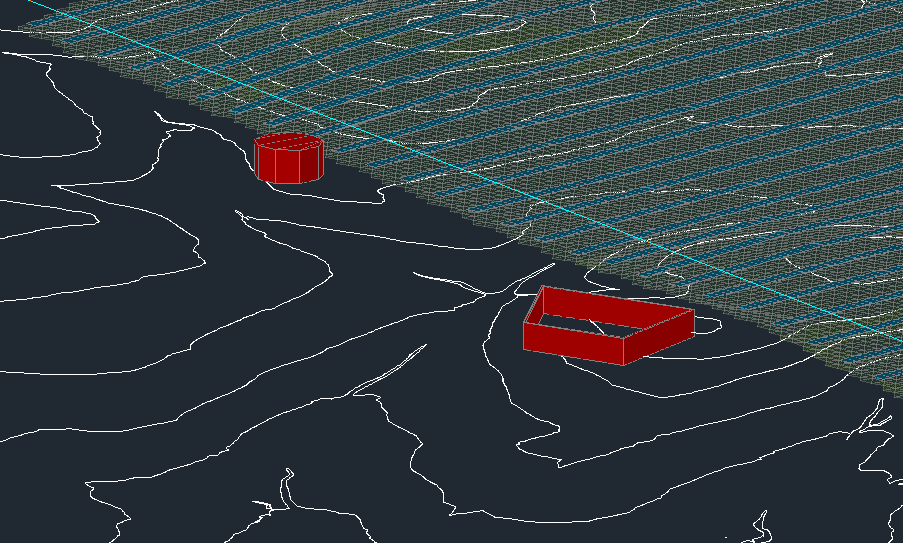

This means you can incorporate any 3D object into your project and achieve greater realism and accuracy.
Where

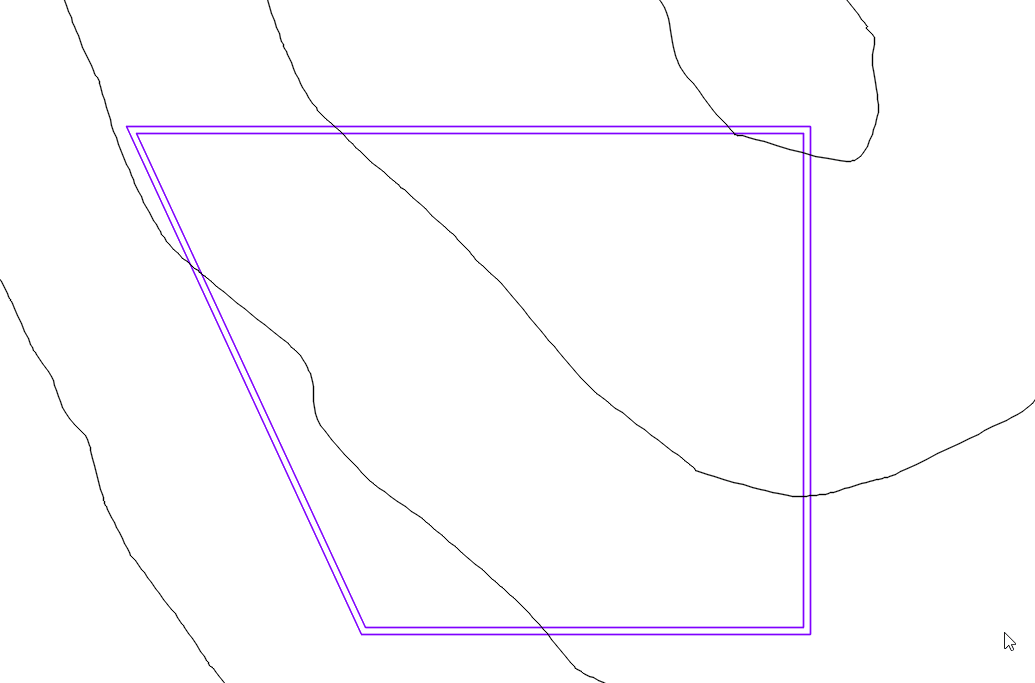

Ensure your 3D object is in the AutoCAD model space and placed in the correct location.
How
Select the 3D Solid or Mesh, and right-click. Under the PVcase menu, choose "Convert to PVcase shading object".
Minor updates
-
Convert to PVcase ignores already converted frames.
-
Improved onboarding for trial users.
