Grading - define space which should be graded between frame rows manually
We’re happy to introduce a new field in the Ground grading tab. It allows you to enter custom pitch and ground between frames will be graded if the pitch between frame rows is lower than the defined value.
Where
Under Civil Analysis, choose Ground Grading.
How
Check the checkbox and enter pitch, up to which space between frames should be graded.
Offset for fence shading object
You can now define the desired offset for fences.
Where

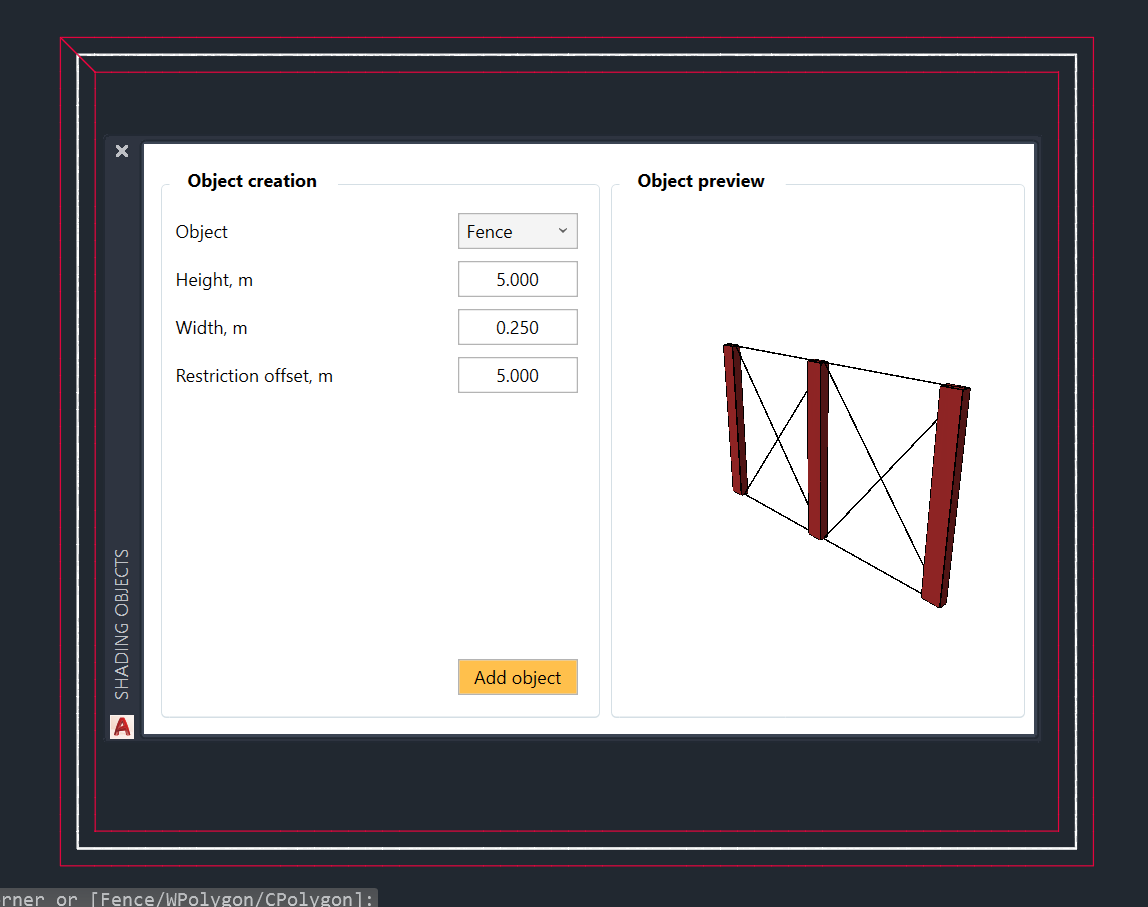

In the Shading objects window, choose Fence shading object.
Ability to edit already placed shading objects
To save time and to avoid manual work of replacing already placed shading objects due to some changes, we now allow editing parameters of already existing ones.
Where

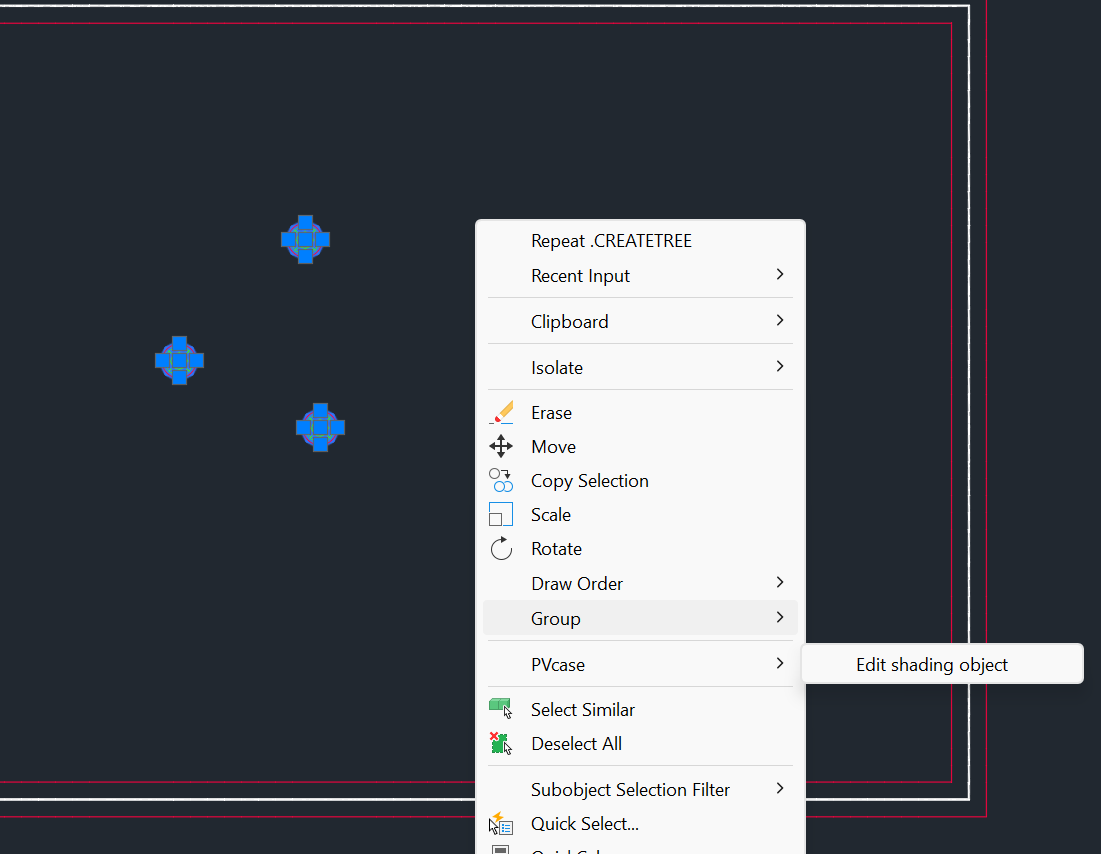

Just select the shading objects you want to edit and choose Edit shading object function from the context menu.
Other updates:
-
Set slope function now works for aligned by motor TFT frames.
-
Updated KML import to use correct projections. It now works the same way in AutoCAD, Map3d and Civil3d.
-
Bug fixes and improvements
