We've improved the electrical design freezing functionality to enable detailed electrical design in the hundred MW range by overcoming AutoCAD performance issues.
Notable changes:
-
Improved electrical object freezing - we've changed the way electrical objects are frozen using the overview tab. Previously due to limitations on AutoCAD's side when freezing a certain large amount of objects AutoCAD would start to stutter and lag making it practically unusable. We've resolved this and encourage everyone who's doing electrical design to utilize this for large scale projects.
-

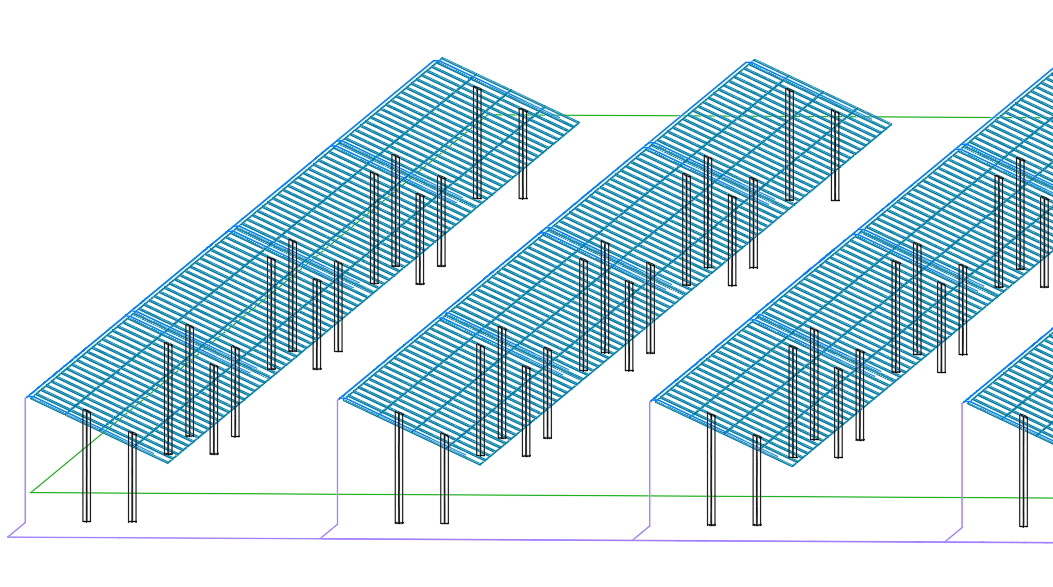

3D cabling on tables without terrain - you can now evaluate the additional cable length that is required for cables to climb/drop from tables for more precise cable runs even when generating tables without terrain.
-
Smaller changes to improve general user experience and a whole lot of bug fixing.
