We were excited to inform you about the latest Ground Mount 2.39 release, which is relevant to Yield users!
More detailed information is provided below:
Capacity Target
Capacity Iteration allows you to quickly check a range of row pitches and tilt angles to see possible system sizes.
Now, it is also possible to define a capacity target. The iteration engine will perform three stages of refinement to find the scenarios that most closely match the given target.
Where
Under Capacity Iteration, enable the Capacity target option.
How
Enter your chosen target for the system size, and hit Iterate. The most closely matching scenario(s) will be pinned to the top of the scenario list.
Custom Shading Objects

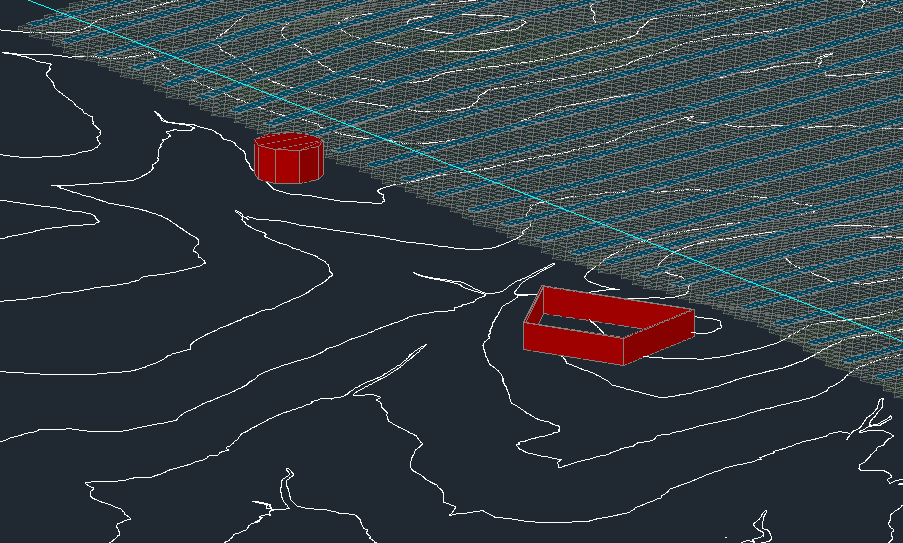

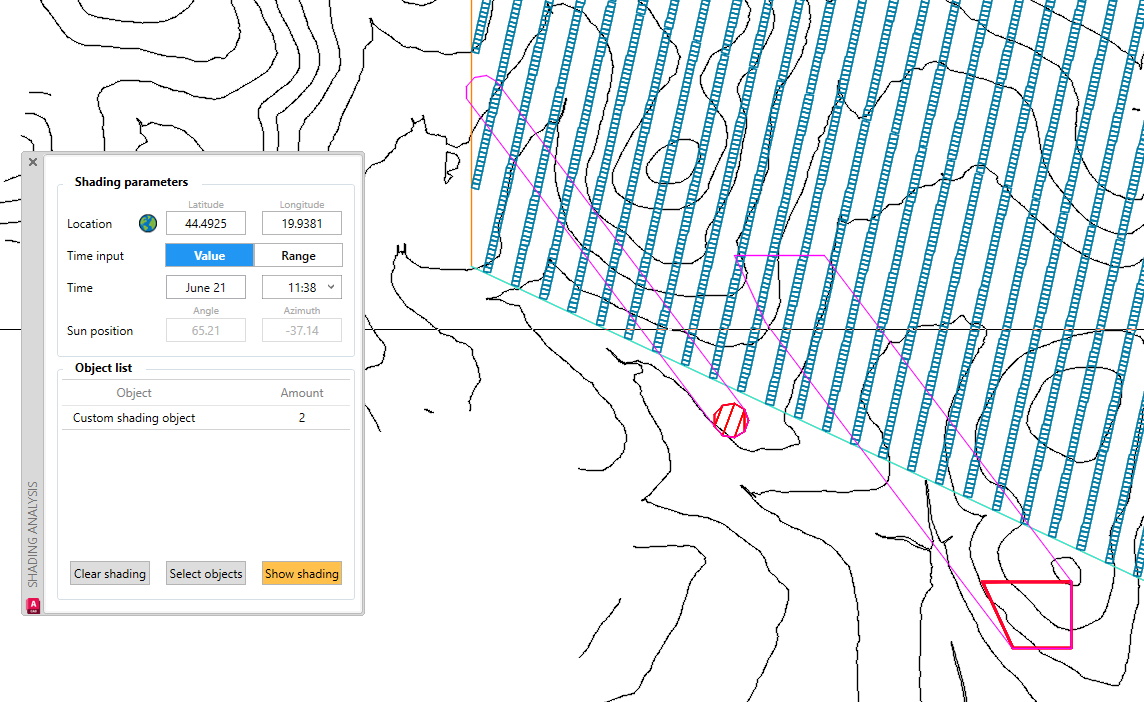

If you have an AutoCAD object of type 3d Solid or Mesh (not Polyfacemesh), it will be possible to add them as shading objects. They can then be analysed in Ground Mount Shading Analysis, or in the Yield shading view.
Where
Make sure your 3d object is in the AutoCAD modelspace, and is placed in the correct location.
How
Select the 3d Solid or Mesh, and right-click. Under the PVcase menu, choose "Convert to shading object."
