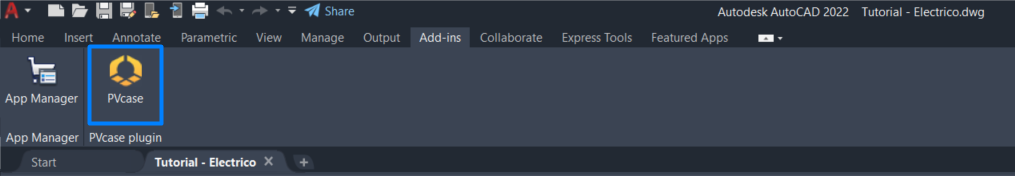

Normally, after the installation of PVcase, its tab should appear in AutoCAD's ribbon under the “Add-ins” section. In some rare cases though, it has been noted that the user might be confronted with some issues regarding its appearance.

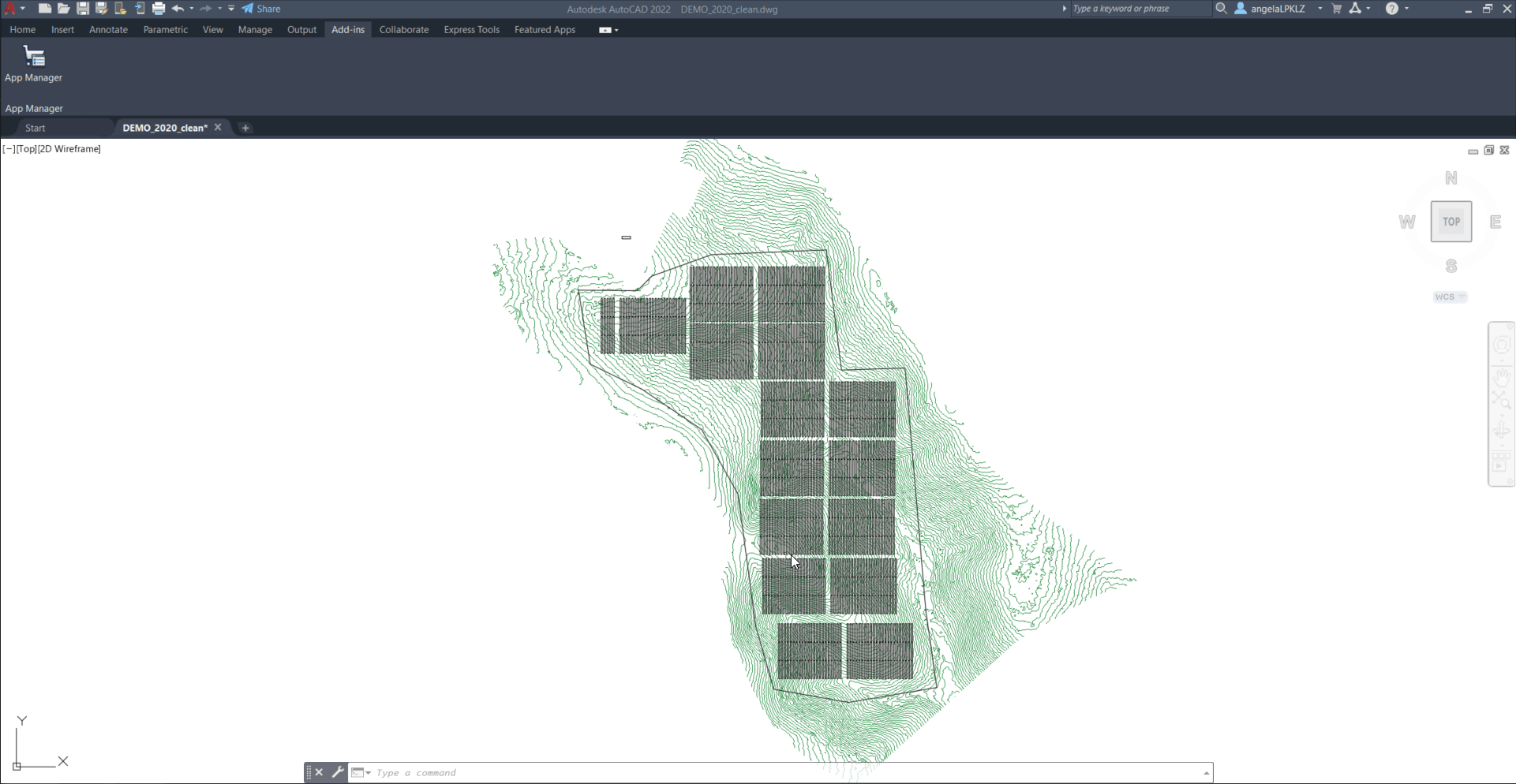

If PVcase does not appear under the “Add-ins” section, try the suggestions below, in the following order:

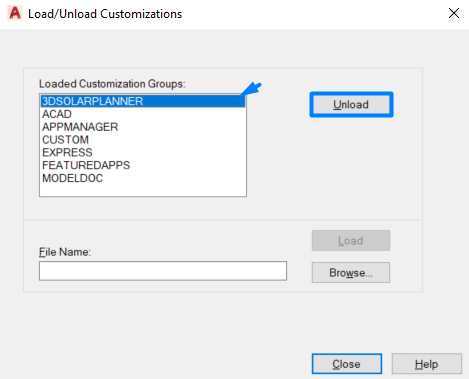

1) Type CUILOAD - at the command bar – the following window will be opened;
2) Here, you can unload PVcase – 3DSOLARPLANNER. After unloading you can close the window.
3) Lastly close and open AutoCAD, this action will load the plugin and this time it should be available at the AutoCAD's ribbon tab.
