Release notes 2.58

📢 What's new

Improvements

Aligned rows generation for E-W

Previously, the Aligned generation option was available only for fixed tilts and single-axis trackers. Now we have extended this option also to E-W mounts, enabling more realistic and reproducible outputs.
Just like other mounts, Aligned generation for E-W can be found within the Frame & Park settings.

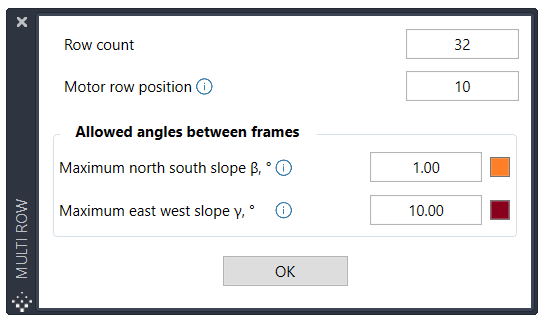

Increased rows limit for multi-row trackers

Multi-row trackers can now be configured to have up to 50 rows, giving ample margin to support the latest makes and models. The default motor position is the first row starting from the left.

Improved experience for placing shading objects

The shading object placement workflow was significantly improved to allow for more efficient representation of site conditions. It’s now possible to pick among different placement modes and objects are automatically adapted to the terrain.

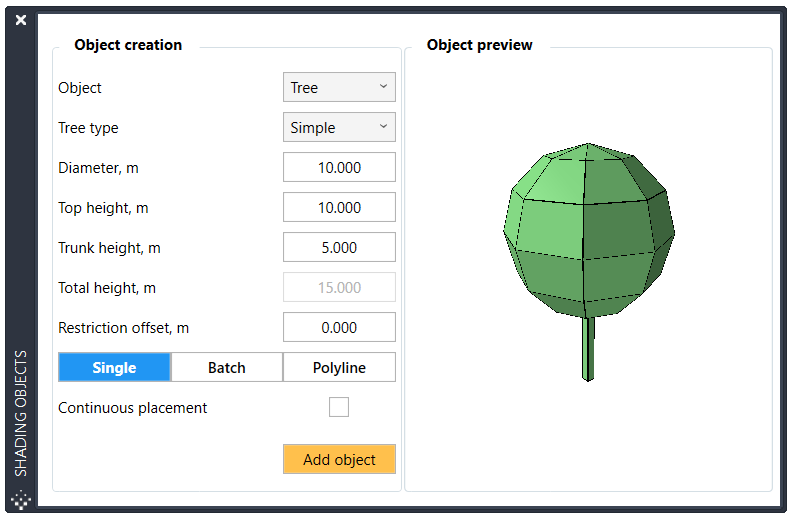

Single

• Placement works as you already know it, one object per click.
• When the continuous mode is active, you can keep placing objects without opening the interface.

Batch

• Assumes there are points that represent where the object is supposed to be.
• After selecting the points, the details about the object dimensions previously entered are used.

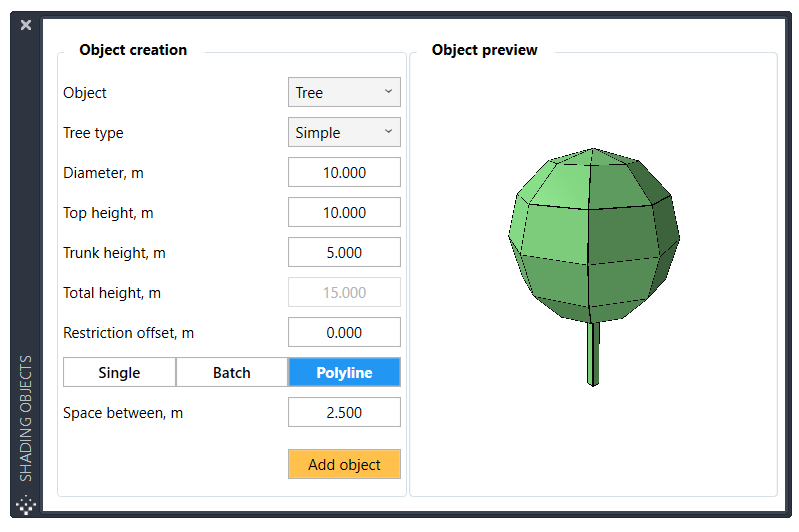

Polyline (NEW)

• Objects will be placed along a polyline at the set distance.
• It’s also possible to select multiple polylines at once.

Now it’s also easier to use custom shading objects: just select it from the object menu, select it from the model space, and place it where you need it.

The supported types are Solid3D, SubDMesh, and PolyFaceMesh.

Only up to 50k polygons per object are supported, and it’s necessary to select one that is not on PVcase layers.


Custom shading objects exportable to PVsyst

When exporting to PVsyst, custom shading objects are included in the PVC file.
Be aware that PVsyst might have size restrictions for import; it’s recommended to limit the use of shading objects whenever possible.

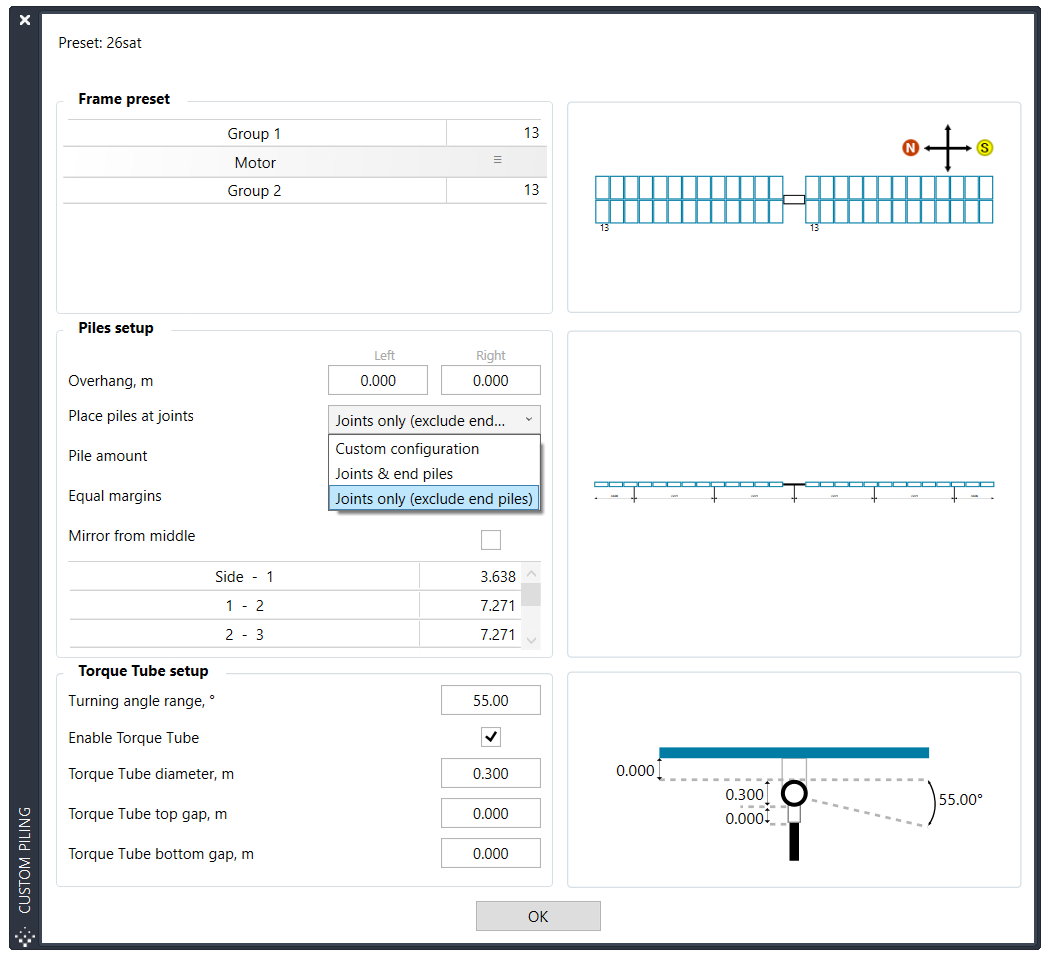

Single-axis trackers piles placement options

By default, when the Place piles at joints option is selected in our single-axis tracker configurator, the piles are positioned at the edges of the frame.
The configurations have been refined to allow for more precise control.

In particular, the Place piles at joints option has been separated into distinct settings, allowing you to specify the outcome you need.

Revised Device distribution on Fixed-tilt systems

In order to reduce the length of DC string cabling, we updated the way that Devices are being placed. Now, they will not be placed closest to the Powerstation, but rather at the center of the strings that they are serving.
For example, if the String inverter is serving three rows, it will be placed on the middle row of the three, instead of the top or bottom row.

Please try out this revision and let us know what you think!

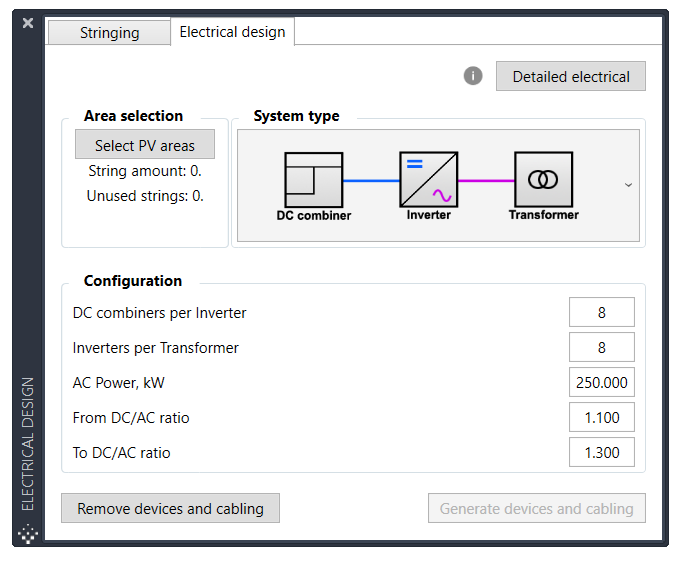

BETA: Preliminary electrical design update

Our Preliminary electrical design feature allows you to quickly complete an electrical design on your layout, with a minimum of clicks.

We've implemented several updates to this feature, based on the feedback you provided. Please let us know what you think of these changes:

• The transformer / central inverter placement is now automated. You simply have to select the block which represents it.
• The electrical design uses the corridors in your layout. We are working on a future update for layouts without corridors.
• The automated cable placement is based on the corridors too, but we are aware of some problems with non-linear layouts. Let us know how we can improve this placement.

We look forward to receiving your additional feedback!


Minor updates

Iterations: performance and accuracy improvements

We reduced the minimum allowed pitch step to 0.01m, and also made several performance improvements. These should result in a noticeably smoother user experience when using Capacity Iteration.
