Once the roof is prepared, the next step is to generate the layout. This is essential for maximizing energy generation and minimizing shading loss.

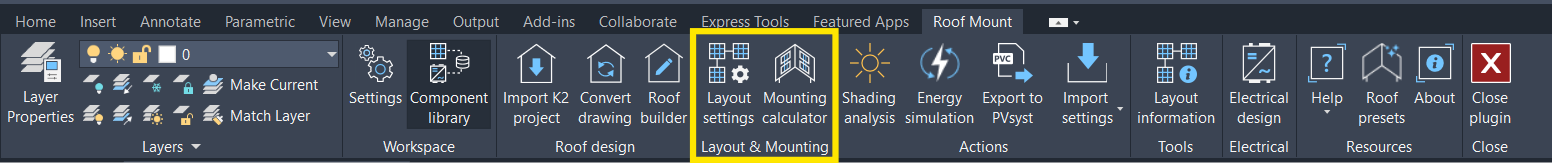

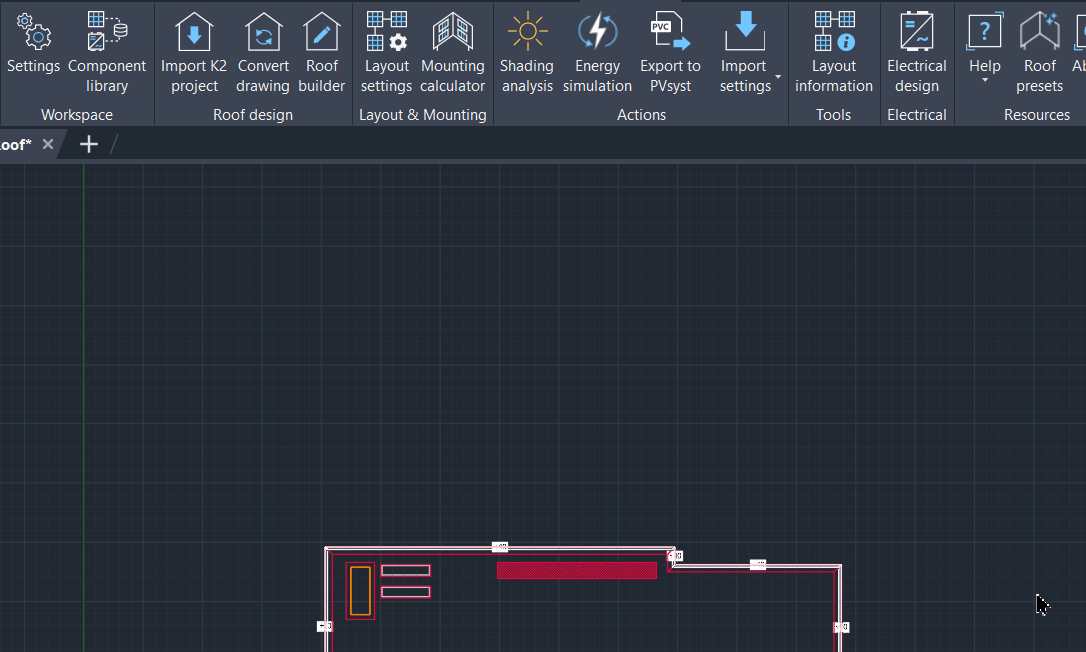

In Layout & mounting, you can create a roof layout using the different functionalities available:
- The Layout settings involve choosing module and inverter presets and setting layout parameters. There are different layout types (like Fixed-tilt and Flat east-west), each with options for orientation, tilt angle, and module placement. You can align modules by parapet or rows. These settings are important because they have a direct impact on energy generation and roof space efficiency.
- The Spacing settings include Design, Corridor, and Height settings. Design settings allow you to define the spacing between your modules. Corridor settings create gaps between modules based on patterns or distances. Height settings define the distance between the roof and the module. Spacing is important because it affects sunlight exposure, ease of movement around the panels, and panel height from the roof.

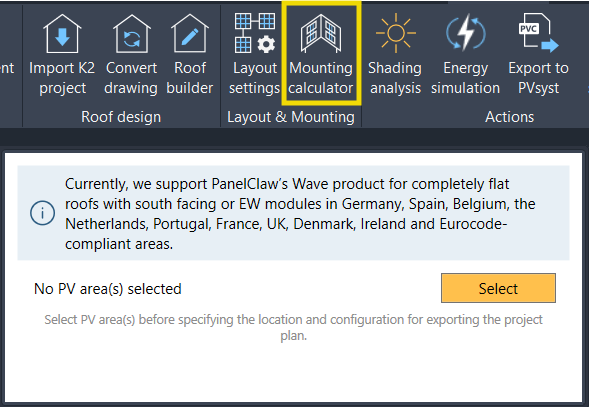

- The Mounting calculator automates the generation of the bill of materials. It uses roof geometry, PV module layout, and system requirements to optimize structural component arrangement and quantity.
Learn more about the layout and mounting creation process in the articles of this section:
