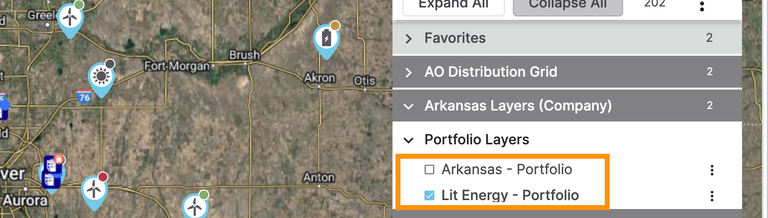

View your complete portfolio directly on any map within the system. Activate the new Portfolio view layer, accessible through the Layer catalog, to visualize all your projects and parcels as a unified portfolio.
View all projects and assets
State-level layer: shows all projects (and associated assets) within the currently selected state
Company-level layer: shows your entire company’s portfolio of projects in Prospect (across all active states).
Track Project Status and Project Technology to change the project symbol.
View/add previously saved parcels, substations, or power lines

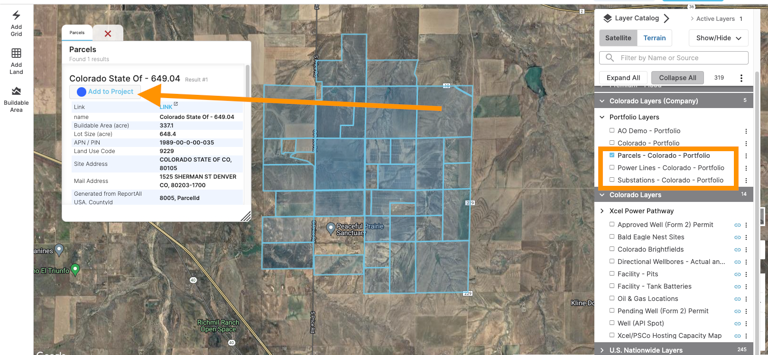

Click on a parcel, substation or line. Then click the Add to Project button in the pop up.
You can also select multiple parcels, substations, or lines to add at once:

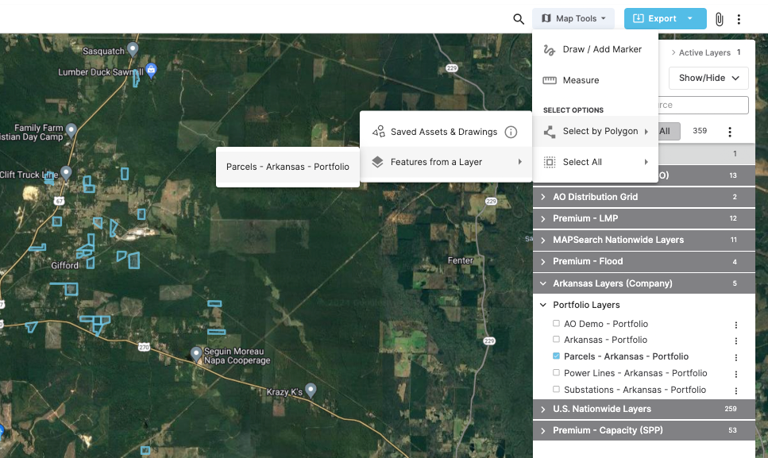

- Click on Map Tools
- Select by Polygon > Features from a Layer > click on the Portfolio layer
- Draw a polygon around the parcels you want to add to the current project map

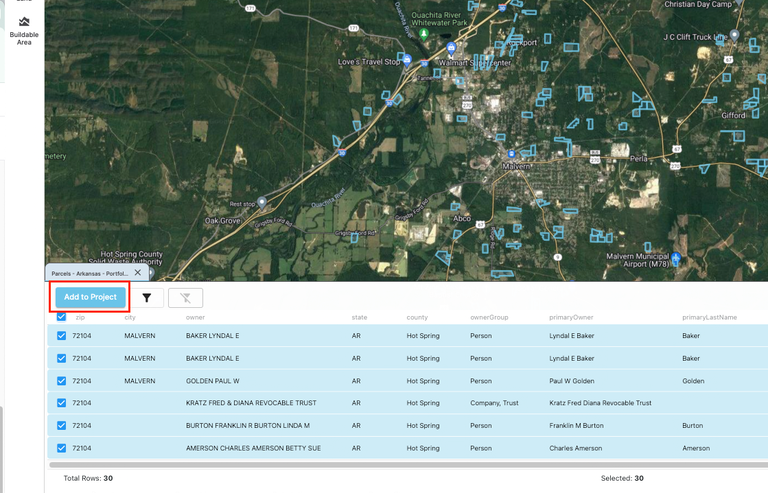

This will bring up a table of the selected assets. Check the box to select all and click Add to Project to finish saving the selected parcels to the current project.
