📢 What's new

New features

Direct PVC Layout Import in PVcase Yield (BETA)

We are excited to announce a Beta feature for PVcase Yield: Direct PVC File Import! You can now upload your external. PVC 3D layout files directly into PVcase Yield to run physics-driven yield simulations.

How it works:

1. Initiate the Import: Navigate to the Layouts & electrical section in your Yield project and click the new + Add new PVC layout button.
2. Upload your File: You can upload a ZIP archive containing your. PVC file along with an optional terrain CSV file. (Note: PVC files do not include all layout statistics; for full data reporting, Ground Mount is still recommended).

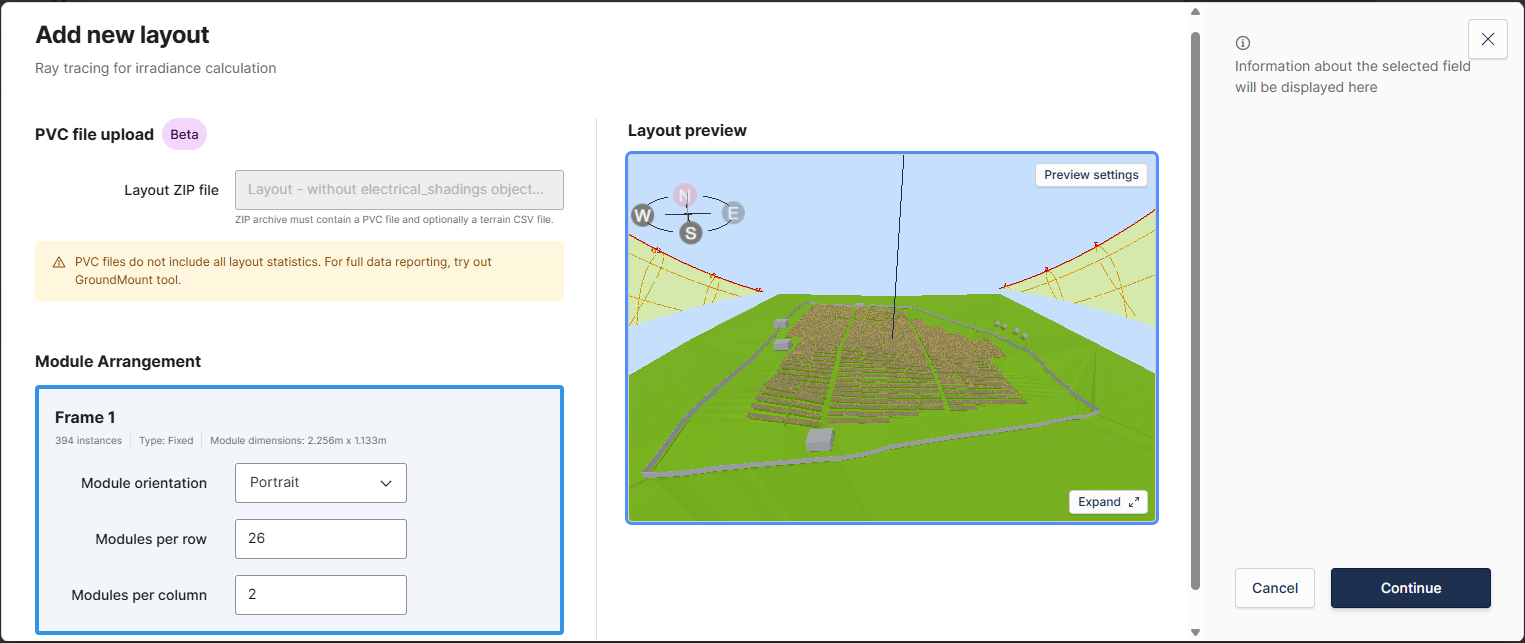

3. Configure Module Arrangement: Once parsed, you can manually configure the module arrangement for the detected frames. Easily set the module orientation, modules per row, and modules per column while verifying your setup in the 3D Layout Preview window.




4. Define Electrical & Stringing: Finally, define your electrical layout by specifying the modules per string, total number of strings, and inverter count. Name your layout, verify the frame type, and click Save layout to proceed with your Yield calculations.

Important Notes & Known Limitations (Beta):

Because this feature is in active Beta, there are a few things to keep in mind:

• Loading Times: Parsing and loading the layout takes a bit longer if the user does not upload a terrain file alongside the PVC.
• Roof Mount Layouts: Roof mount cases may not currently parse properly due to their geometric specifics. We are actively working on this!

We want to hear from you! Since this functionality is in Beta, your front-line feedback is crucial. Please try uploading your past. PVC files and let us know how the parser handles your specific layouts.

We believe these enhancements will significantly improve your simulation experience and provide more robust options for modeling and analysis.
