If you already have a site and/or POI that you want to evaluate interconnection potential for, follow this flow to evaluate it using PVcase Prospect Capacity.
Create a project for the site
From a new or existing project, locate the site/POI of interest: use the map search bar and type in the site’s APN/PIN, Address, or Lat/Long Coordinates — or import site data.
Once you've honed in on the location of the site, add the target parcels to the project:

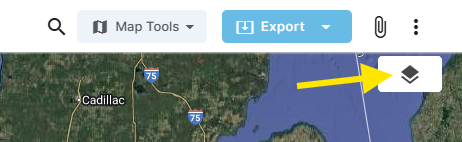

- Turn on the parcels layer in the Layer catalog in the top right of the project.
- Save the parcels of interest to the project.
Look up interconnection details for nearest POI
- In the Layer catalog, navigate to the Premium – Capacity folder for the region.
- Open the Bus Headroom Capacity or Line Headroom Capacity folder.
- Turn on the interconnection scenario layer of interest.
Note
Need help understanding which interconnection study scenario to look at? Visit our Capacity FAQs page for more answers.
Need help understanding which interconnection study scenario to look at? Visit our Capacity FAQs page for more answers.

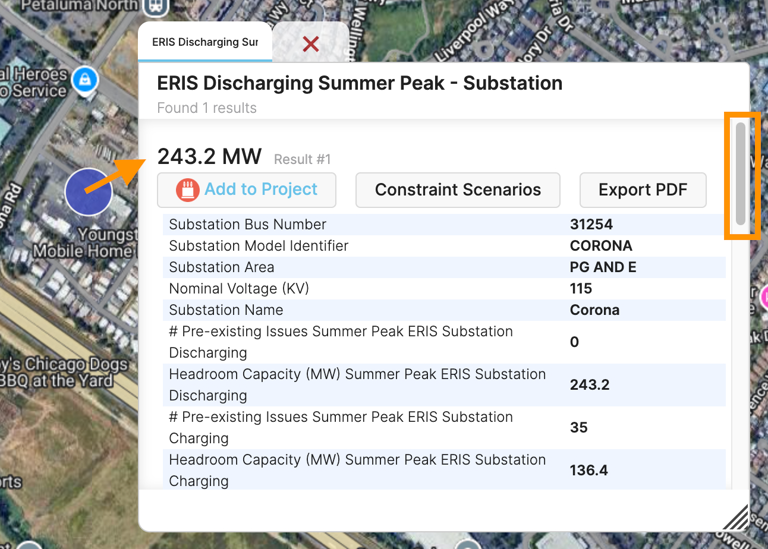

- Click on the POI that is nearest to the target site.
- In the pop-up window, scroll up and down to review key interconnection details, including:
- Headroom capacity — is it sufficient for project size?
- Voltage — is it in the target voltage range for the project?
- Allocated costs at different project sizes — are these costs within your project budget?
- Pre-existing issues count — are there a lot of pre-existing issues? How confident are you that they'll be fixed? Click the Constraint Scenarios button for full details on pre-existing issues. Click Export PDF to export the Interconnection Report for the POI.
Save POI to project
In the pop-up on the map, click Add to Project to save the substation (bus) or transmission line to the project.
