Overview

This report delivers in-depth details about the substation and incorporates results from our N-1 injection study power flow modeling. It also highlights potential constraint scenarios and more.

To create a complete report in moments, simply click Export PDF after selecting a substation from the Capacity dataset. This makes it easy to share details about target POIs with investors, partners, and transmission teams.


Important
The report is available in the United States.

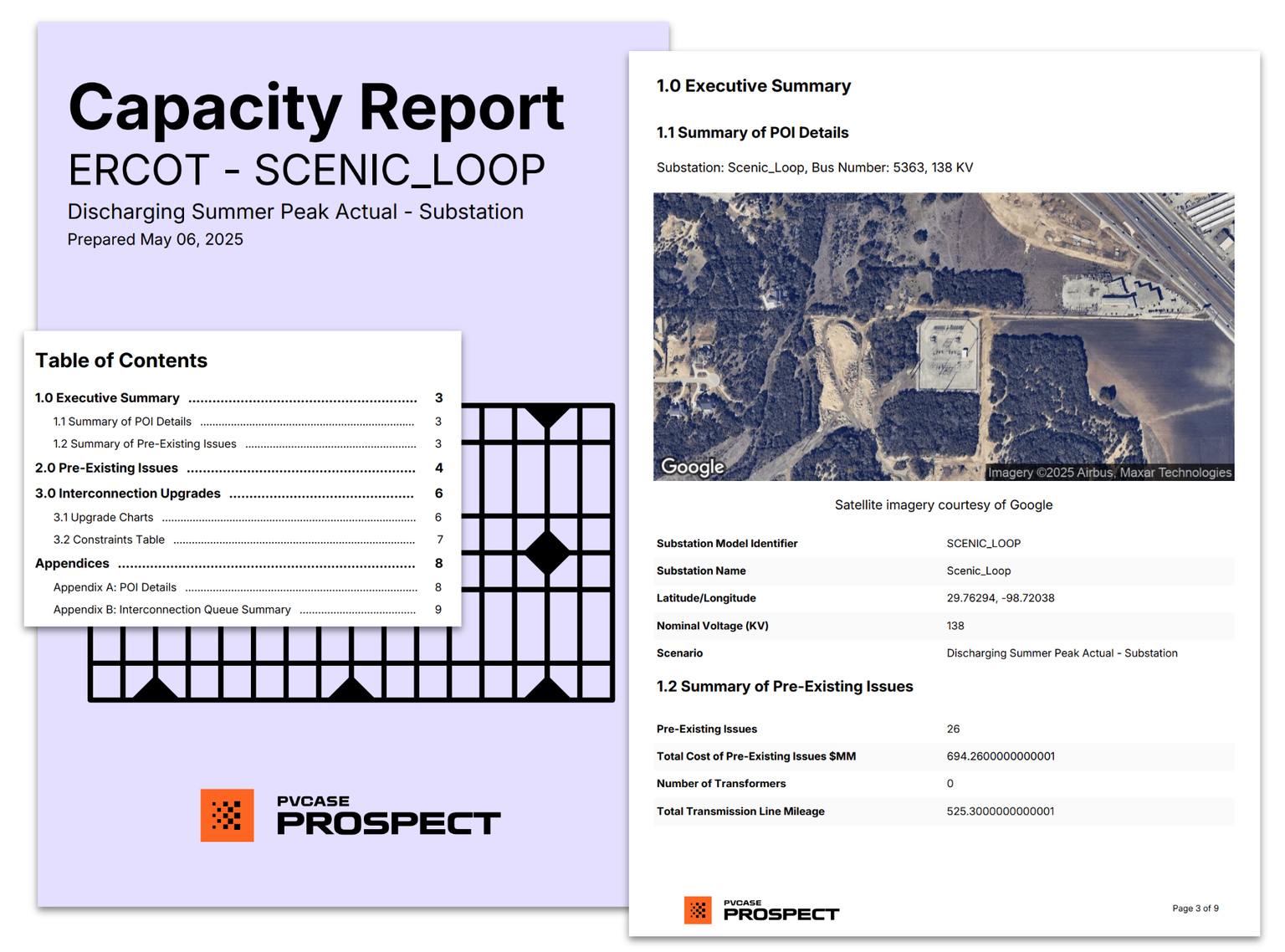

See the example file below:

Example file – CapacityReport-Bus Download icon Download



How to export the report

Export a report for a previously saved substation

If you have already previously saved a substation to a project and need to export the capacity report for that substation, follow the steps below.

  1. Open the desired project.

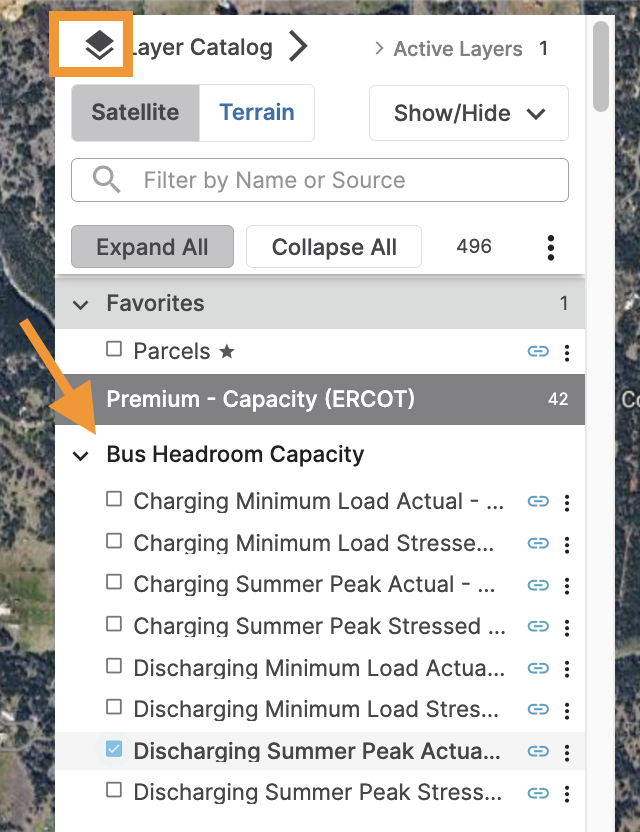

  2. From the Layer catalog, turn on the desired Capacity layer.
  1. Click on the substation/bus of interest in the layer.
  2. In the substation capacity pop-up, click Export PDF.



Export a report for a new substation

Export a report for a new substation that has not yet been saved to a project.

  1. Open an existing project or create a new project.
  2. In the workflow sidebar, select Add Grid.

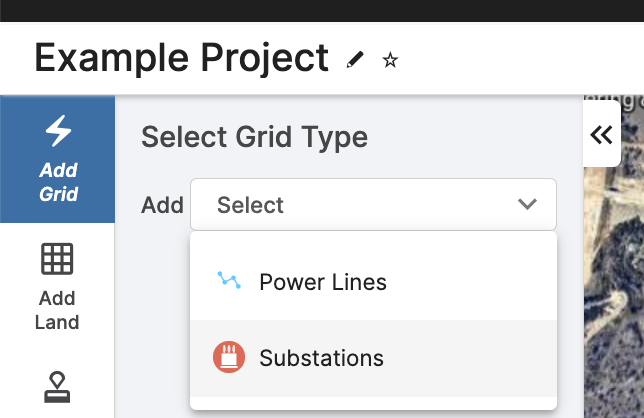

  3. Select Substations.
  1. Select from Layer.
  2. Click Choose Source, and select the desired capacity layer.

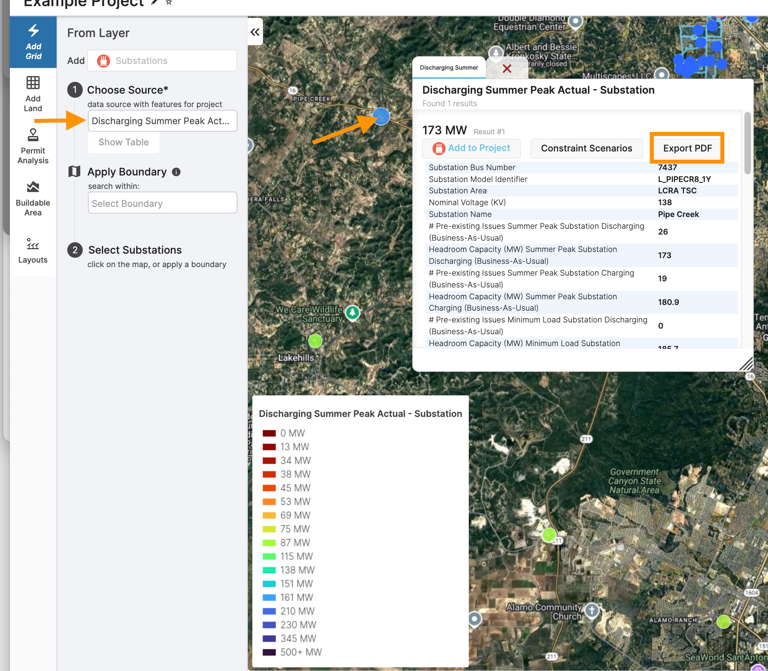

  3. On the map, locate the substation of interest and click on the substation.
  4. In the substation capacity pop-up, click on Export PDF. The PDF will download to your computer.







×
