Quickly add grid infrastructure to your project in PVcase Prospect by drawing directly on the map. This article guides you through the steps to create custom grid lines tailored to your project’s needs.
Select method

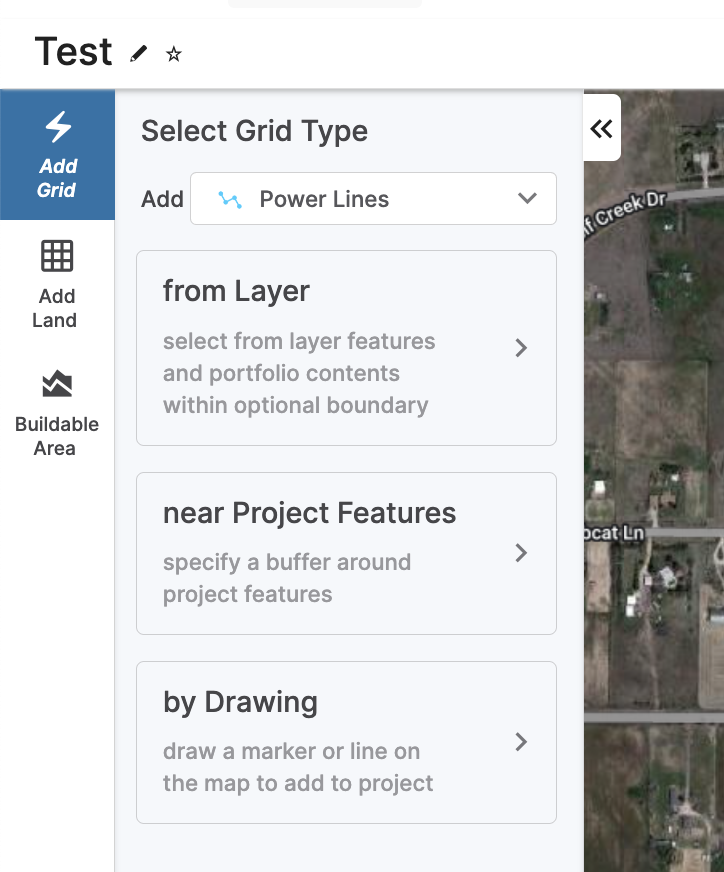

From the Add Grid option in the sidebar, select by Drawing.
Then continue with the steps outlined below.
Step 1. Draw the location
Use the drawing cursor over the map to draw the location of the grid infrastructure
Step 2. Update the Name or Voltage
If needed, you can also select Edit More Details to modify additional metadata fields.
To modify the drawing itself, see Edit style, shape, location drawings.
Step 3. Add to Project
To save your new feature, click Add to Project.

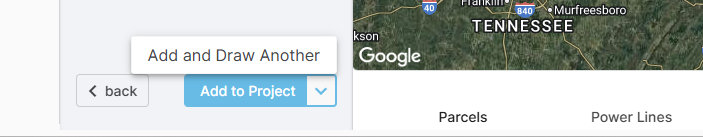

To add multiple elements sequentially, click the down arrow on the right side of the button and choose Add and Draw Another.
