Release notes 1.58

📢 What’s new

Improvements

SLD settings

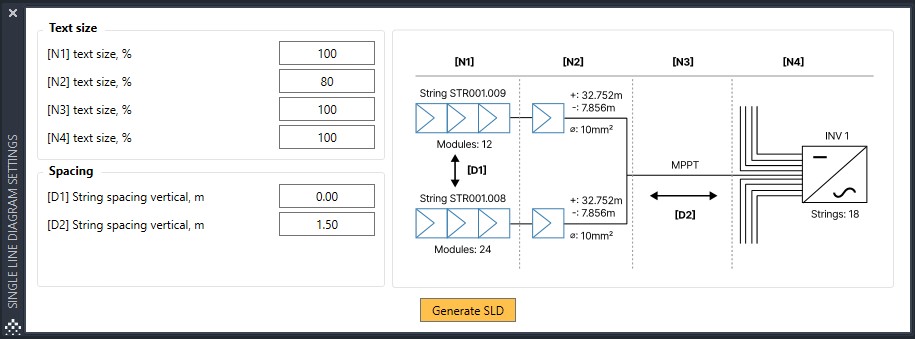

We now offer the ability to customize the Single Line Diagram for better layout spacing and enhanced readability. The diagram is printed with a split at each device, allowing users to easily rearrange components by clicking and dragging.



SLD is now virtually divided into nodes, enabling concurrent updates to spacing and text size within each node. Furthermore, SLD settings can be imported and exported, allowing easy reuse of preferred configurations.

Convert to PVcase - Block enhancement

To accommodate various objects on the roof, block conversion has been enhanced. In addition to regular blocks, two additional options have been added - sloped blocks and nested blocks.

How does it work?

The sloped block conversion process adjusts each point of the object based on its height. It is effective for blocks with sloped surfaces or varying heights at different points, though highly irregular objects may not be perfectly represented afterward. This technique is also suitable for converting parapets made from a single polyline.

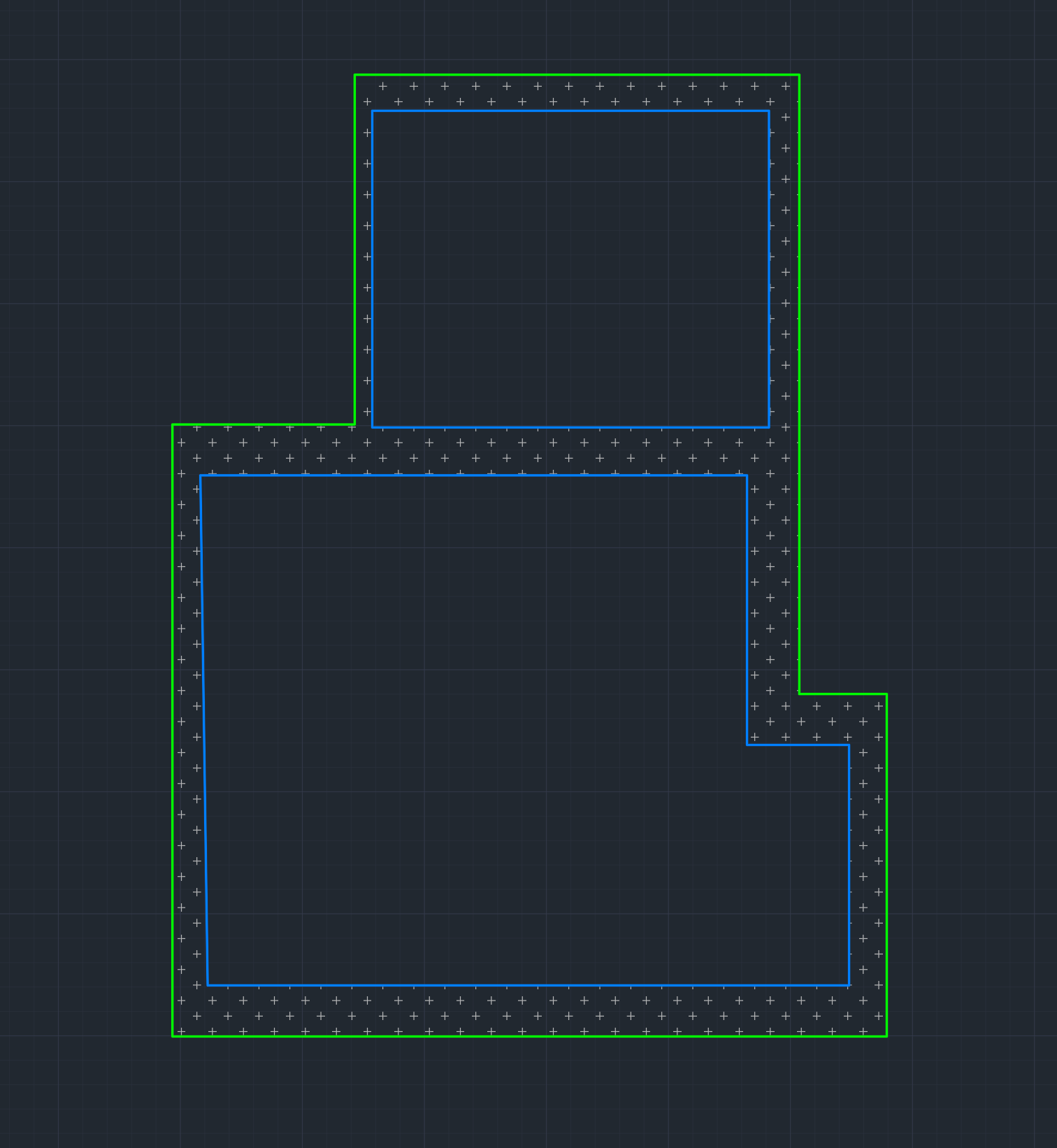

Nested blocks enable converting the space between an outer perimeter and interior blocks. This technique can be useful for some parapet configurations where the outer line is a single object and the inner roof sections are separate lines, as illustrated in the image.
