Release notes 1.59

📢 What’s new

Improvements

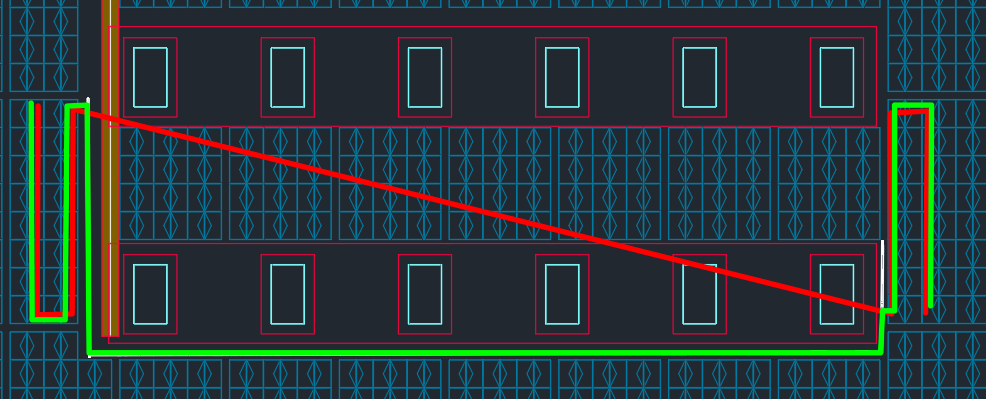

Long string jumps redirected to cable trays

This improvement lets you direct string jumps into cable trays. Roof obstacles can force connections between non-adjacent modules, resulting in loose cables. The new option lets you redirect these jumps to cable trays for a cleaner design.

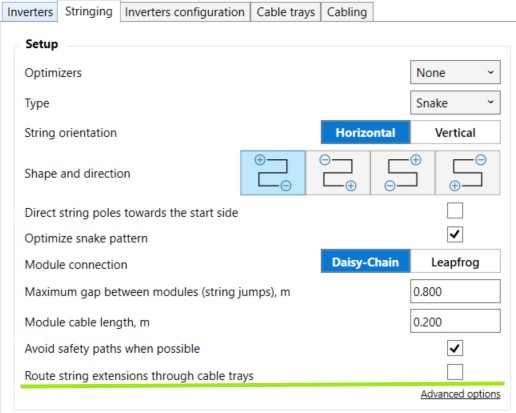

Selecting the new option automatically redirects any existing string extensions to cable trays when cable trays are within reach. This is enabled for the daisy-chain stringing type and is applicable to any module type.

Improved roof planarization

This enhancement improves roof planarization logic. When a roof has multiple points but only 1-2 are off, the improved logic maintains the correct corners and corrects the incorrect ones while keeping the slope at the same angle.

Minor updates

Leapfrog strings direction flip enabled

Previously, only daisy-chaining supported flipping string polarity. We've now added the same functionality to Leapfrog.

How to use it: Select the desired string, open the context menu, and select Flip string polarities under Roof Mount options.
