📢 What’s new
PVcase Ground Mount now exports the next-generation PVCollada 2.0 format, co-developed with PVsyst to close the biggest interoperability gaps between layout and yield simulation.
Improvements
Export to PVCollada 2.0Â
- No more motor-gap rework: Tracker torque tube and joint/motor gap geometry now travel with the export — stop manually reconfiguring sensitive areas every time your tracker layout changes.
- One file, not two: The terrain mesh is embedded directly in the .pvc2 file, eliminating the CSV alignment offset issues you've encountered during import.
- Broader ecosystem: Full COLLADA 1.5 compliance ensures your export opens smoothly in both Blender and SketchUp.
- Overhangs: Now supported on all frame types.
How to use it

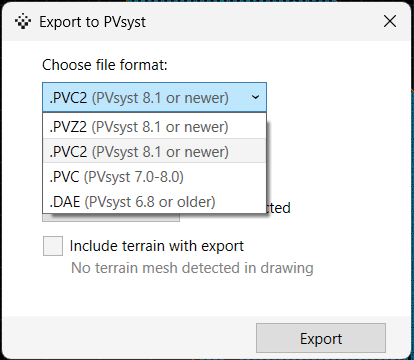

Export to PVsyst as usual — .pvc2 sits alongside .DAE and legacy. PVC in the export dialog.
Â
What this doesn't do yet
This release covers geometry only. Mechanical and electrical model improvements are expected for future releases.
Learn more about Updating to the latest version.
As always, we're here to help if you have any questions.
