In this release:
1. Alignment line enhancements
What: Interactive Alignment Line Editing
How:
-

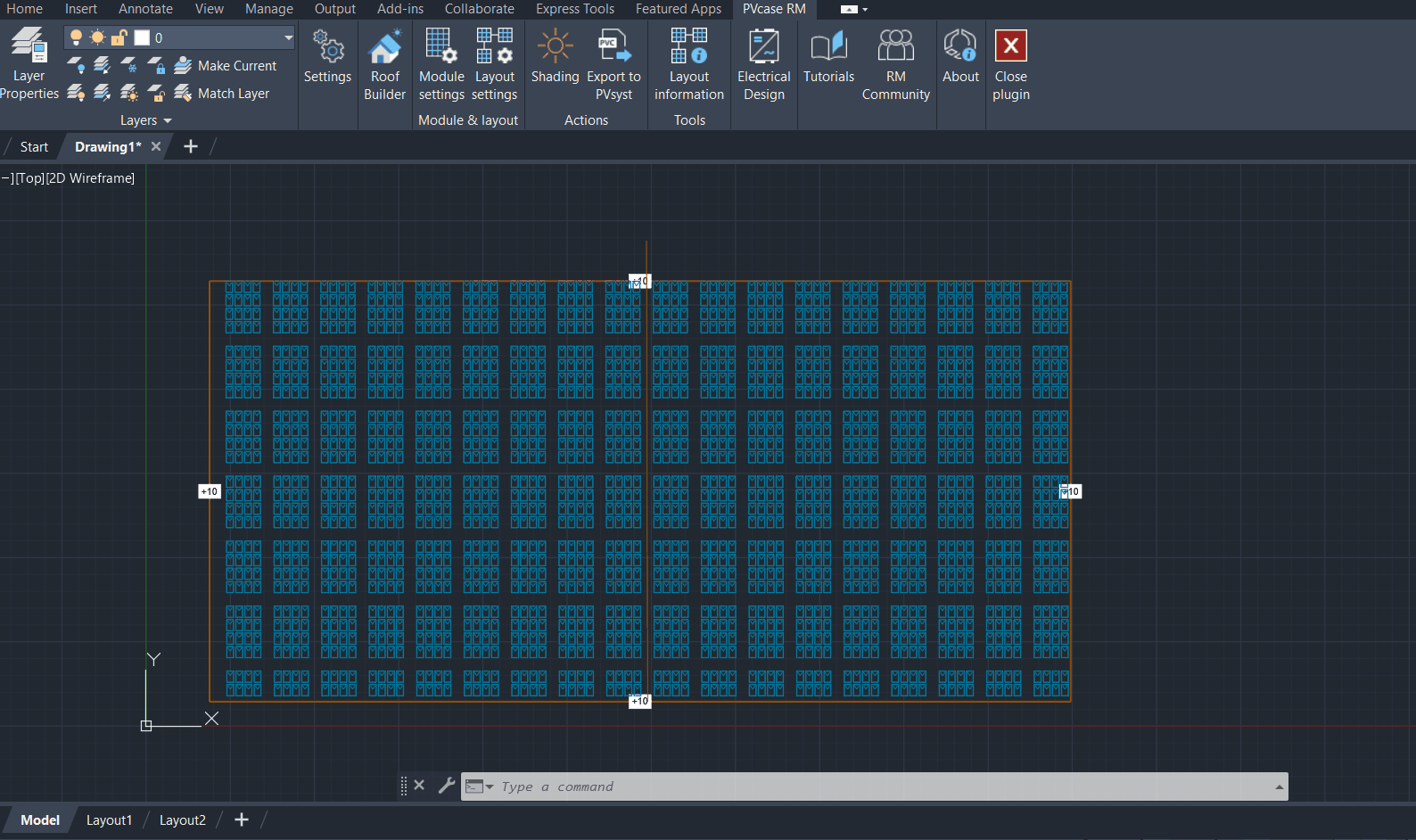

Prompt for the user: When creating or modifying an alignment, you will now be prompted to "Specify the first point of the alignment line." This streamlines the alignment creation process.
-
Dynamic Alignment Line Modification: Users can now make real-time adjustments to the alignment line by simply clicking on it. This provides a more intuitive and efficient way to customize the alignment to your project's needs. Once adjustments are made, simply press "Enter," and the layout will be re-generated, reflecting the changes.
-
To evoke the alignment line, mark PV area and right-click. It will ask you to draw the alignment line.
2. MPPT enhancements
What: Possibility to change software decision on MPPT: Move and add MPPT connection
How:
-

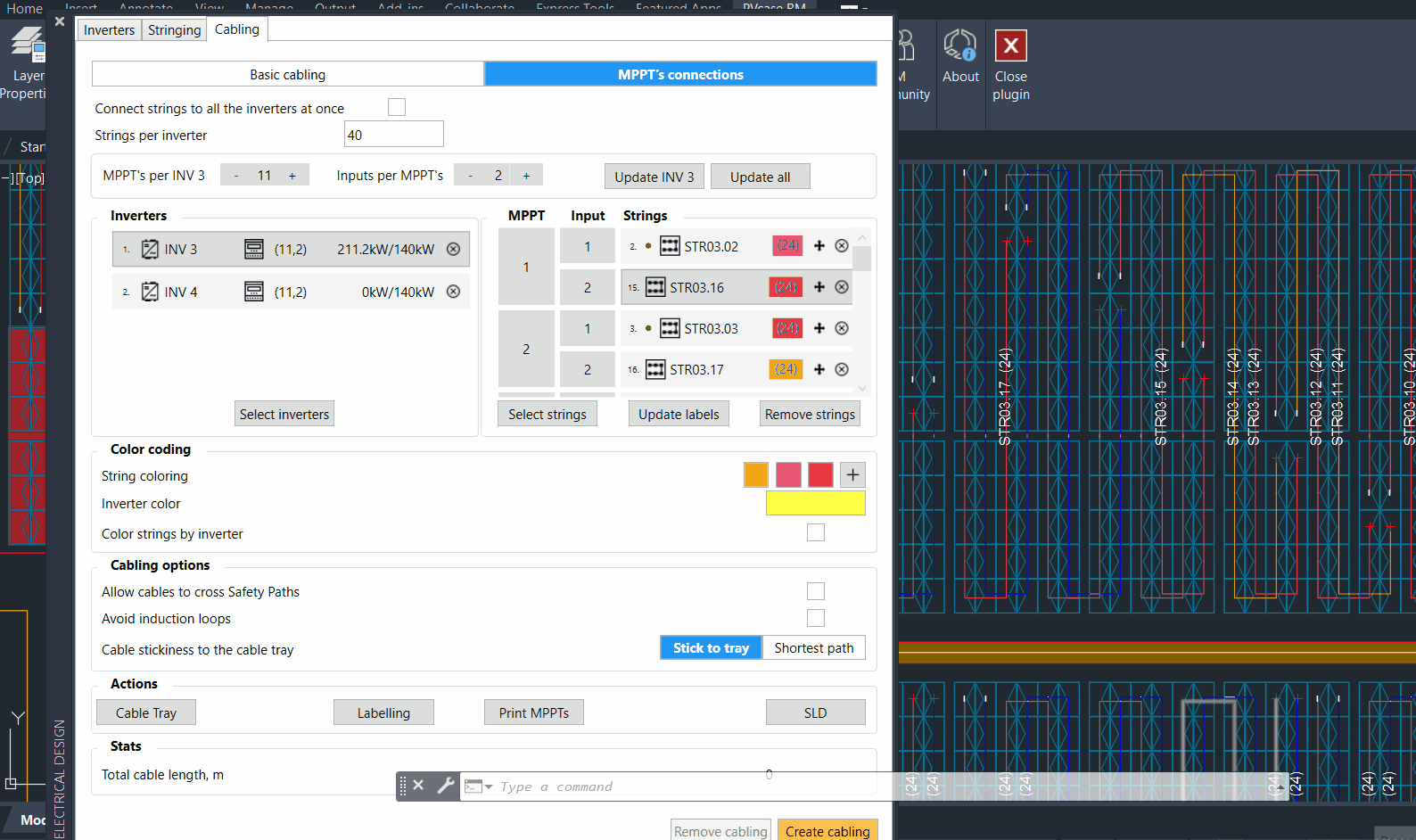

Now, on the string modal, you'll find a "Move" button. This button allows you to effortlessly relocate a string to a different inverter or MPPT input.
Streamlined String Movement:
-
When you click the "Move" button, a dialog opens, offering you a selection of where you want to move the string.
-

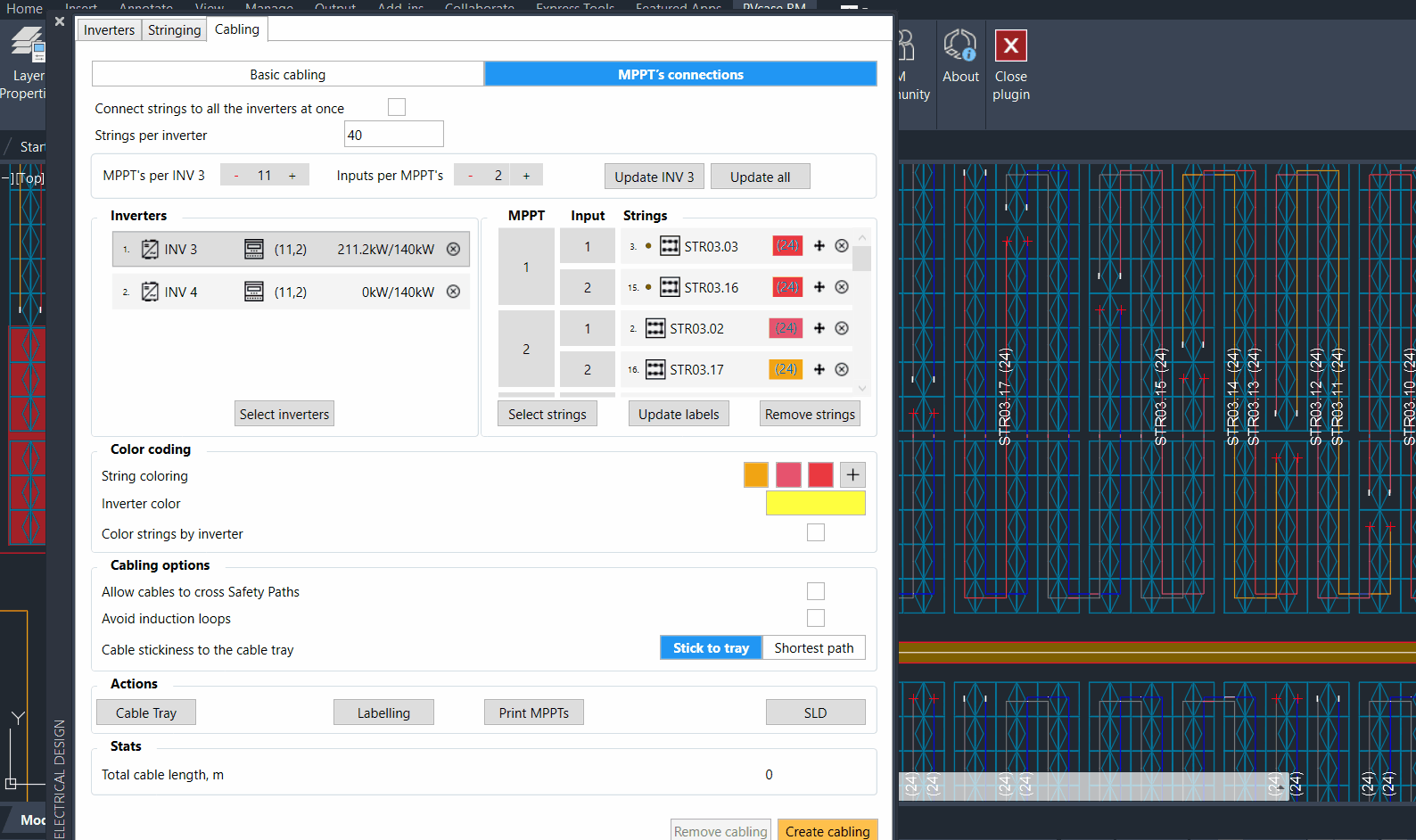

After configuring your preferences and clicking "Change," the selected strings swap positions with each other.
-
Changed strings are marked with a green dot, making it clear which strings have been relocated.
Inverter Status Indication:
-
If the strings are moved to different inverters, the receiving inverter will flash orange, indicating a change in its configuration.
Effortless Label Updates:
-
String labeling remains intact after rearranging them. However, we've added a button that allows you to update the labeling according to numerical logic.
-
Hover over this button to see a tooltip that explains its purpose: "This will update the string labels based on numerical logic after changing their positions."

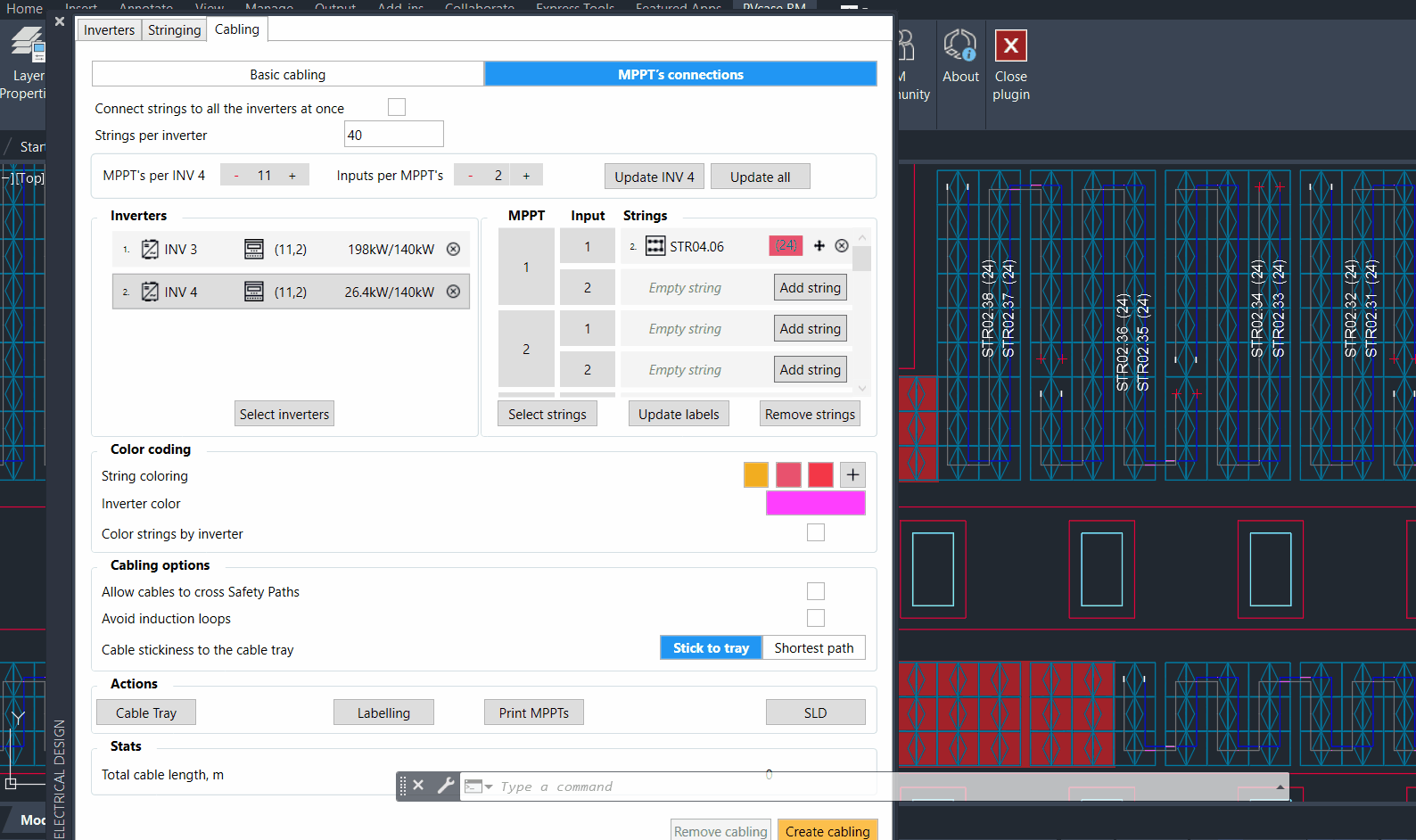

Convenient String Addition:
-
You can now select any string from the drawing when clicking "Add string" on an empty string card, simplifying the process of adding strings to your layout.
