In this release:
-
Inverted E-W system
What: We have introduced the Inverted E-W system, starting from the upper side, which allows users to align the layout in accordance with specific safety regulations in different countries.
How: To utilize the Inverted E-W system, simply navigate to the 'Layout settings' and select 'Reverse E-W' from the 'Layout type' dropdown. Once selected, click 'Place modules' to apply the changes to your layout. This feature enhances flexibility and compliance with regional safety standards.
-

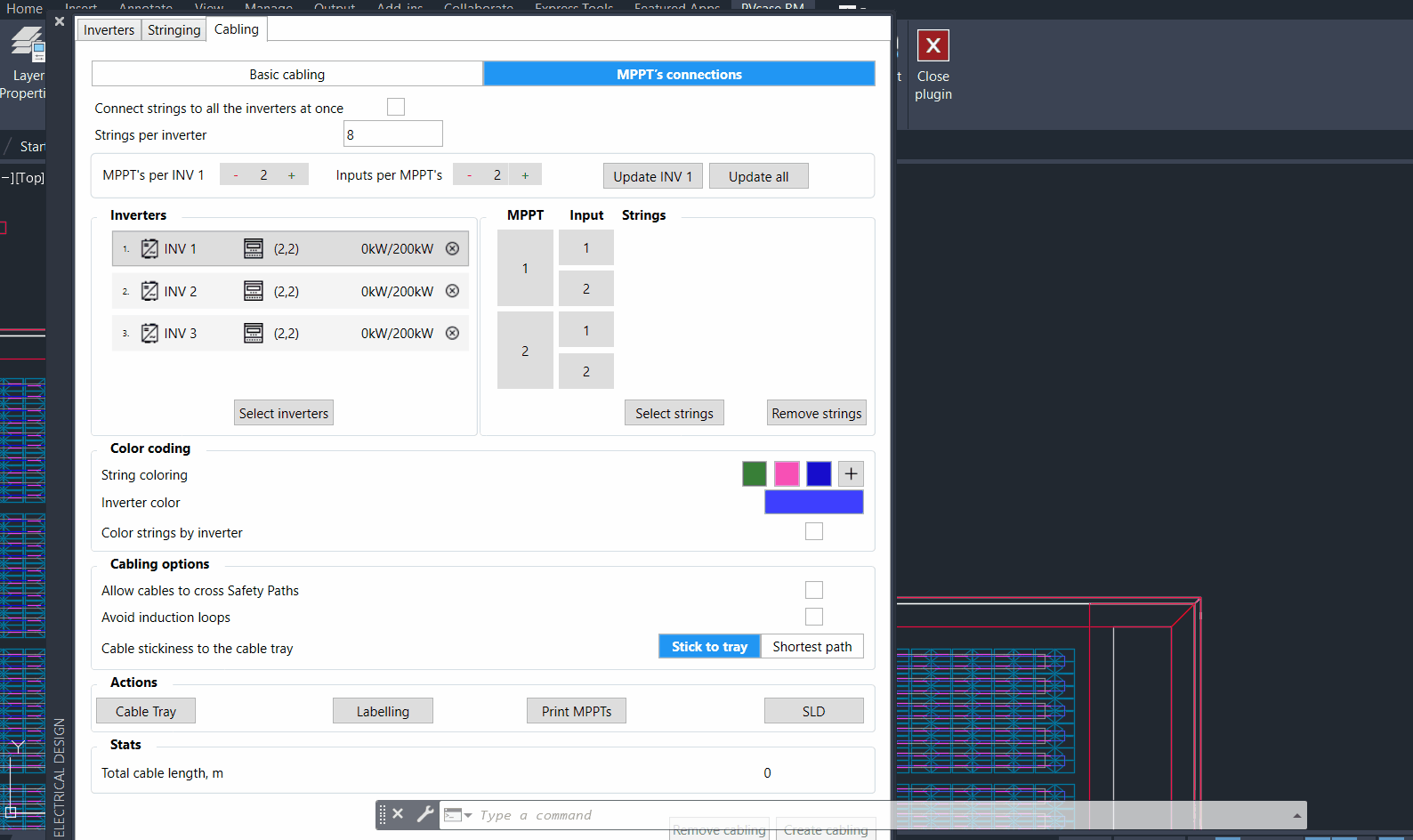

Enhanced MPPTs and Connections Management
What: We have now made it easier for users to customize the MPPT's (Maximum Power Point Tracking) per inverter and Inputs per MPPT's parameters for specific inverters.
How: In the MPPT's settings, you will find two new buttons: 'Update {inverter_name}' and 'Update all.'
-
'Update {inverter_name}' button will appear when a single inverter is selected, allowing users to modify parameters exclusively for that inverter. Additionally, the selector for MPPT's per inverter will dynamically update its name to 'MPPT's per {selected_inverter_name},' providing clarity during settings adjustments.
-
For improved visualization, an icon and MPPT settings numbers will be displayed in the inverter card, helping users identify the parameters set for different inverters at a glance.
-
The 'Update all' button facilitates global changes, enabling users to apply the current MPPT settings to all inverters at once.
