Export parcel images (PNG)

Updated

Related to

Export high-resolution parcel images (PNG files) in bulk for all parcels on project to make it simple to include images in landowner mailers, internal presentations, etc.



Overview

Export raw image files for each parcel on a project (or an individual parcel) for use in internal or external collateral.

The downloaded zipped file will include:

  • One folder per parcel with up to two images of each parcel:
    • (Image 1) Parcel boundary on the map (no constraints displayed)
    • (Image 2) Parcel boundary on the map with constraints displayed (buildable area/hazards) - will only export if the Buildable Area Analysis has already been run for that parcel.
  • One CSV contents file spreadsheet describing information about all parcel images exported - this will make it seamless to bulk insert parcel images into a mail merge.

You can export parcel image files for




All parcels on a project

  1. Open the project

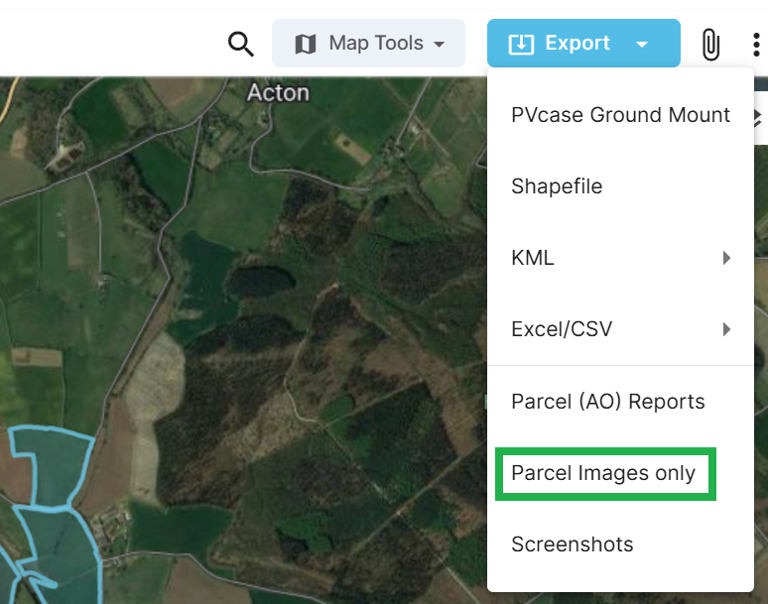

  2. Click the blue Export button (top-right corner of the project page)
  3. Select Parcel Images only from the dropdown menu

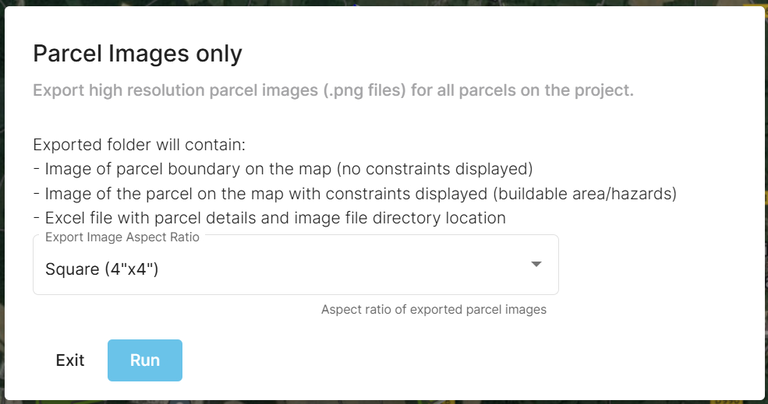

  1. In the Export Parcel Images modal, select desired image aspect ratio
  2. Click Run to download the parcel images

This will download a zipped file to your browser (downloads folder).

  1. Click on the file to unzip the file and see the folders within it.



A single parcel on a project

The single parcel export will only include parcel images and will not include a CSV file.

  1. Click on the parcel marker on the map
  2. In the parcel details pop-up, click See Actions
  3. Under Asset Tasks, click Export Parcel Images only



Zipped folder with parcel images

Once you export the parcel images, a zipped folder will download to your browser. The zipped folder contains all the associated files/folders.

Folder for each parcel:

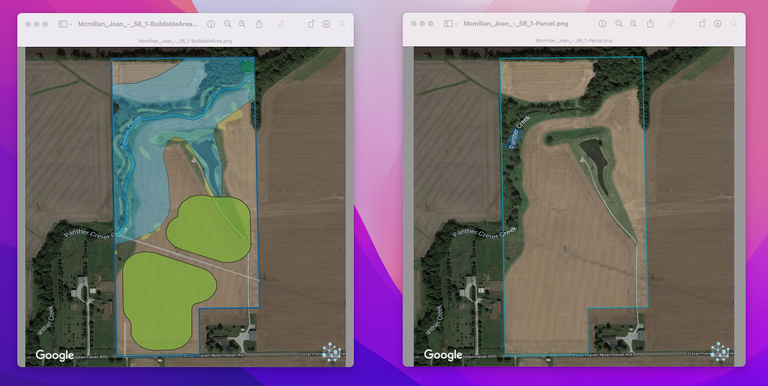

  • Two images of each of the parcels; one with the constraints labeled ...-Buildable Area.png and one without the constraints labeled ...-Parcel.png
  • Contents.csv (not included for single parcel image exports)

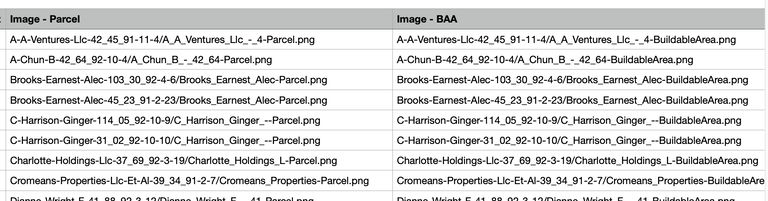

Contents File (CSV)

Easily insert parcel images into a landowner letter mail merge using the contents.csv file. The file includes commonly referenced parcel attribute columns (from the project) and the file name of each of the associated images so you can easily bulk insert these images into a landowner mail merge.








×
