Create a copy of an existing project to create different site layouts/versions, copy a project to a new state if it was accidentally created in the wrong state team, or create a subproject.
Create a copy of an existing project
Important
Trying to compare buildable area analysis parameters by creating copies of a project? Hold on! The buildable area analysis constraint maps/calculations are saved to the parcel record itself, so re-running the analysis on the same parcel in a copy of a project will also update the buildable area analysis for that parcel on all projects. To compare different parameters, try exporting the data before re-running the analysis for easier comparison.
Trying to compare buildable area analysis parameters by creating copies of a project? Hold on! The buildable area analysis constraint maps/calculations are saved to the parcel record itself, so re-running the analysis on the same parcel in a copy of a project will also update the buildable area analysis for that parcel on all projects. To compare different parameters, try exporting the data before re-running the analysis for easier comparison.

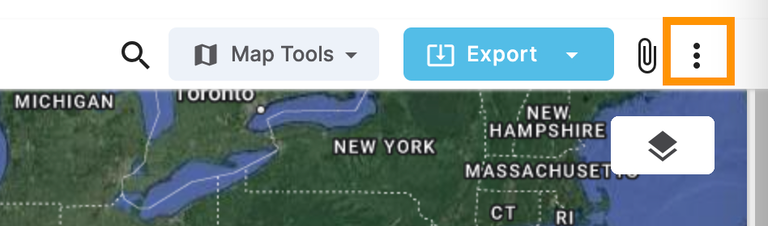

- From a project, click on the three-dot button on the top-right of the project page
- In the dropdown menu, click Copy Item
- Adjust the project Name field as needed
- Select the state Team where the copy should be created if not the same as the original team (if the original project was created in the wrong state, you can copy the project using this dropdown to the correct state/team).
- Click Copy to finish creating a copy of the project
Copy part of a project
There are two methods to create subprojects:
- From the project map
- From the asset table
The first method is ideal if you'd like to create a subproject containing multiple types of assets (substations, lines, parcels and power plants). The second method is ideal if you'd like to create a subproject containing only one type of asset.
Method 1: From the project map (polygon-select)
- Apply filters to the asset table (optional)

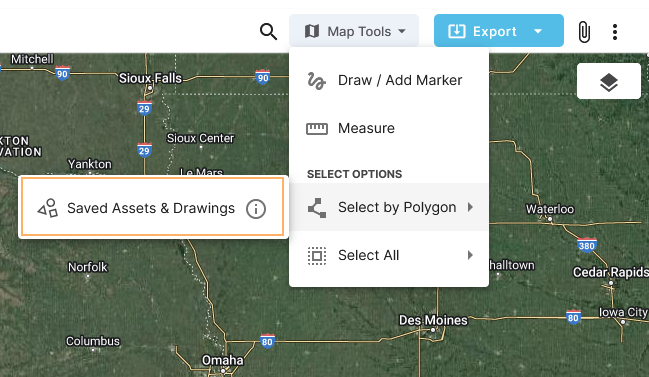

- Click Map Tools > Select by Polygon > Saved Assets and Drawings
- Select what you want to copy into the new project

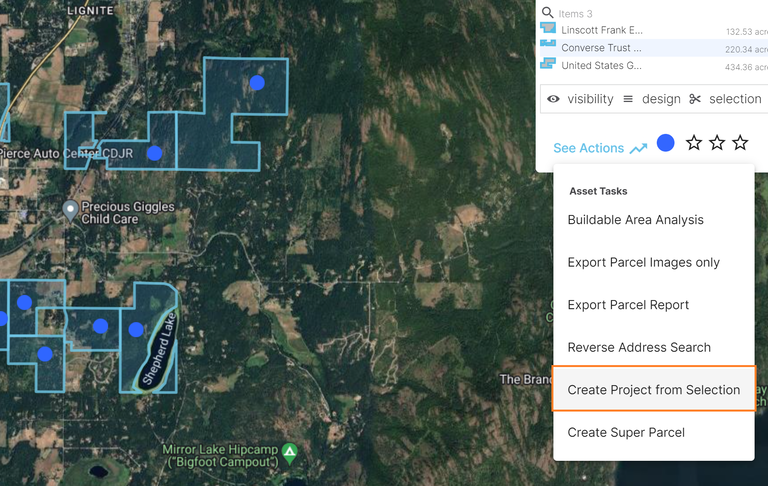

- In the Map Selection box, click See Actions
- Click Create Project from Selection

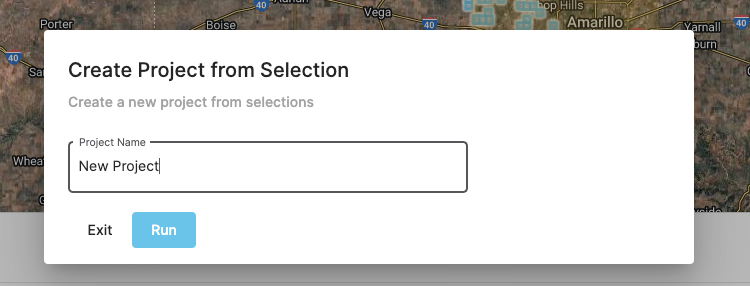

- Enter a name for your new project and click Run.
Method 2: From the Asset table

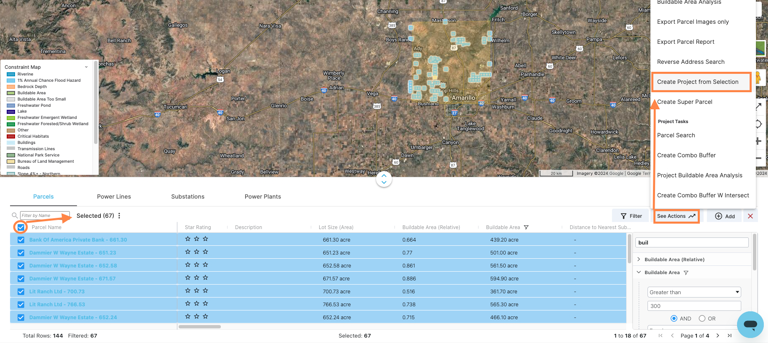

- Filter the desired asset type (parcels, substations, lines, or power plants) to define the scope for the subproject
- Select filtered results
- Click See Actions > Create Project from Selection

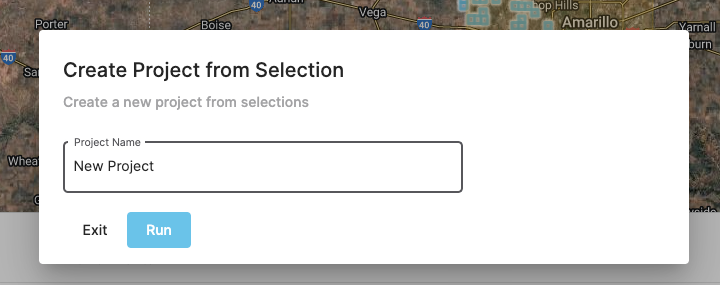

- Enter a name for your new project and click Run
